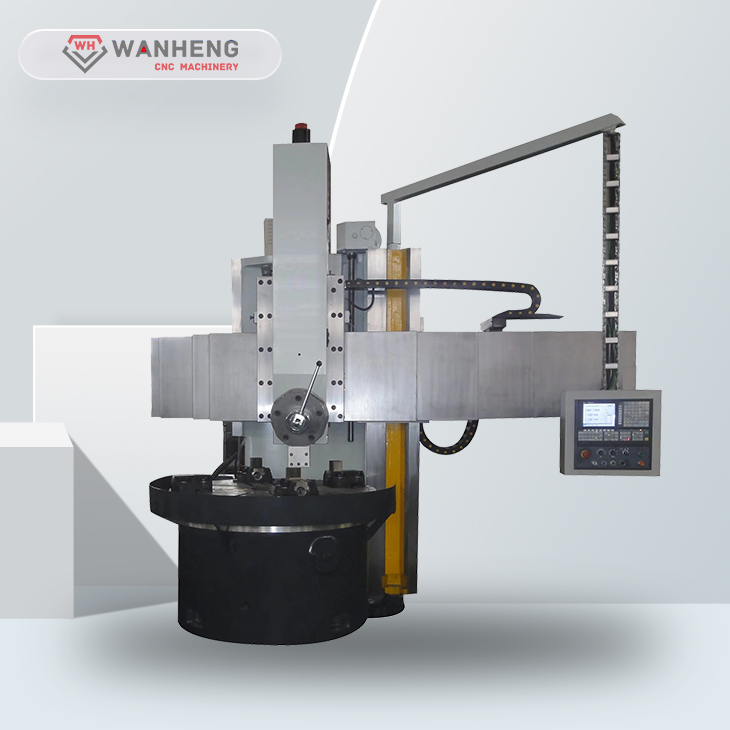

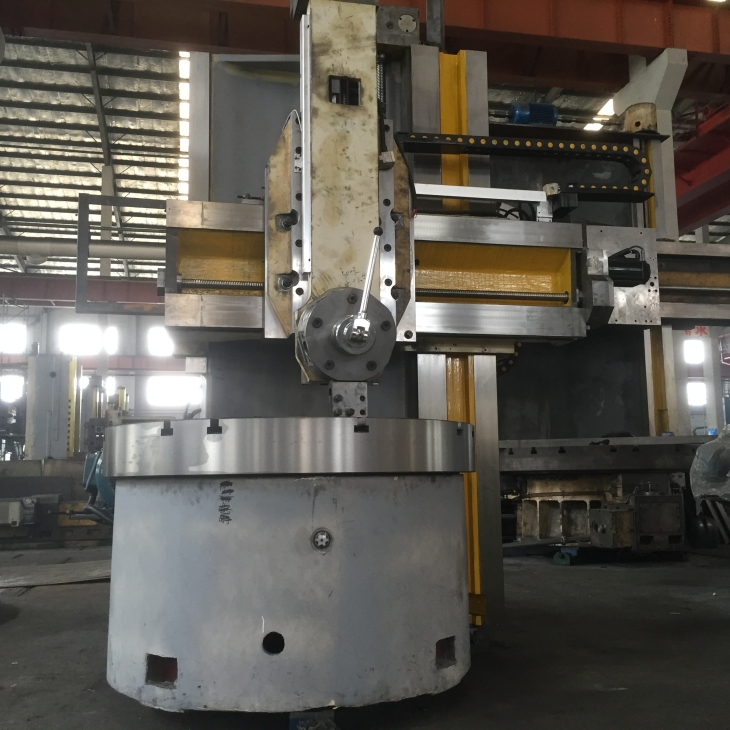

CK5116 Single Column Vertical Lathe
CK5116 Single Column Vertical Lathe, CE ISO certificate
Send InquiryProduct Detail
Product Parameter
Item | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max turning diameter of | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
vertical tool post | ||||||
Workbench diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max weight of work piece | T | 3.2 | 5 | 8 | 10 | 10 |
Max height of work piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Workbench speed range | r/min | 6.3-200 | 5-160 | 3.2-100 | 2-62 | 2-62 |
Series | 16 | 16 | 16 | 16 | 16 | 16 |
Level travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 1000 | 1000 | 1000 | 1000 |
Main motor power | Kw | 22 | 30 | 30 | 37 | 45 |
Machine weight | t | 9 | 13 | 20 | 23 | 32 |
Machine dimensions(L*W*H) | mm | 2277*2540*3403 | 2700*3100*4700 | 3235*3240*3910 | 3380*3360*4000 | 3450*3940*4200 |
