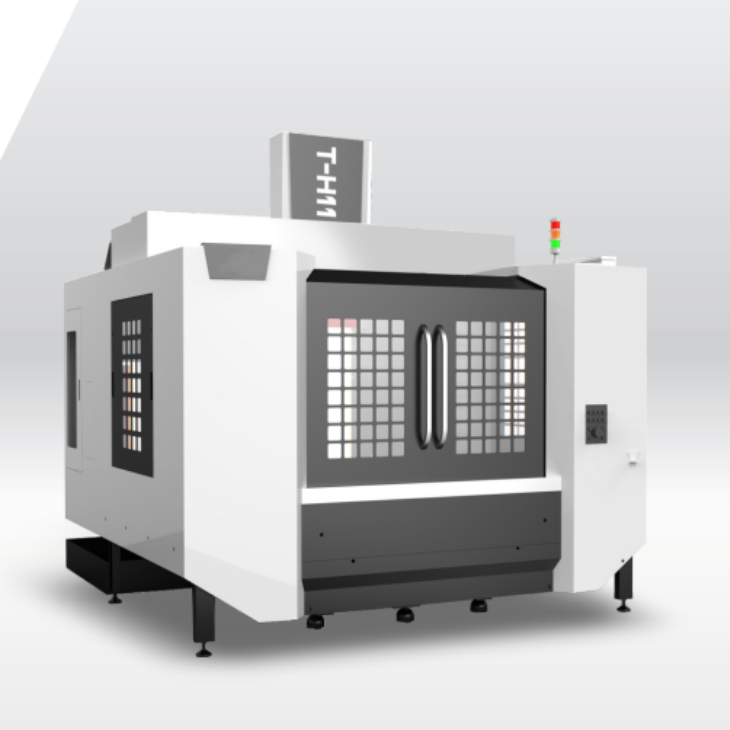

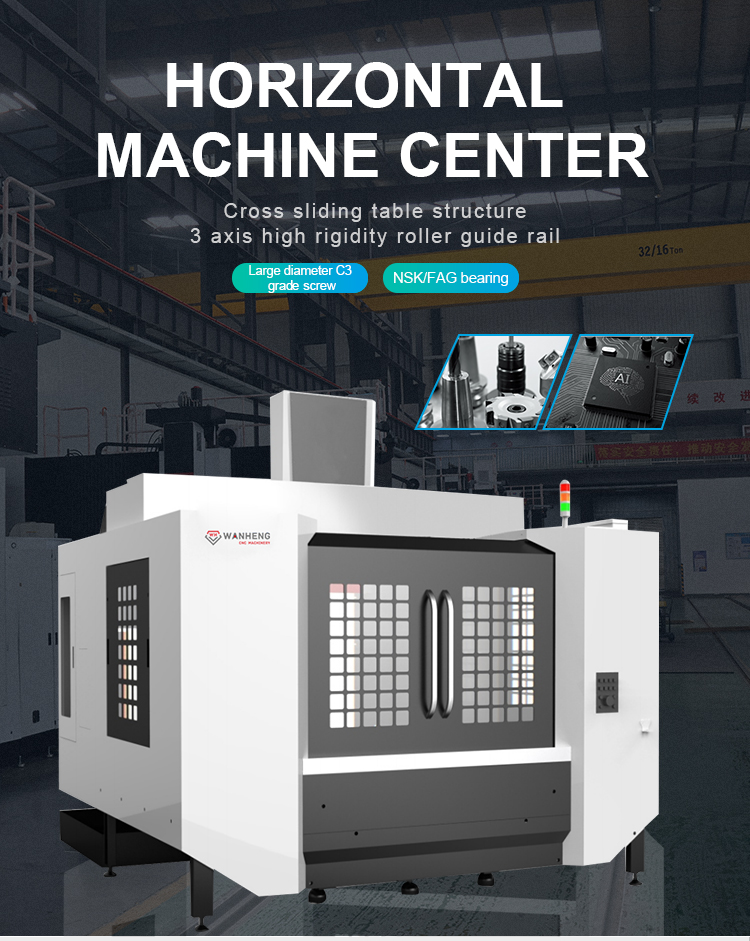

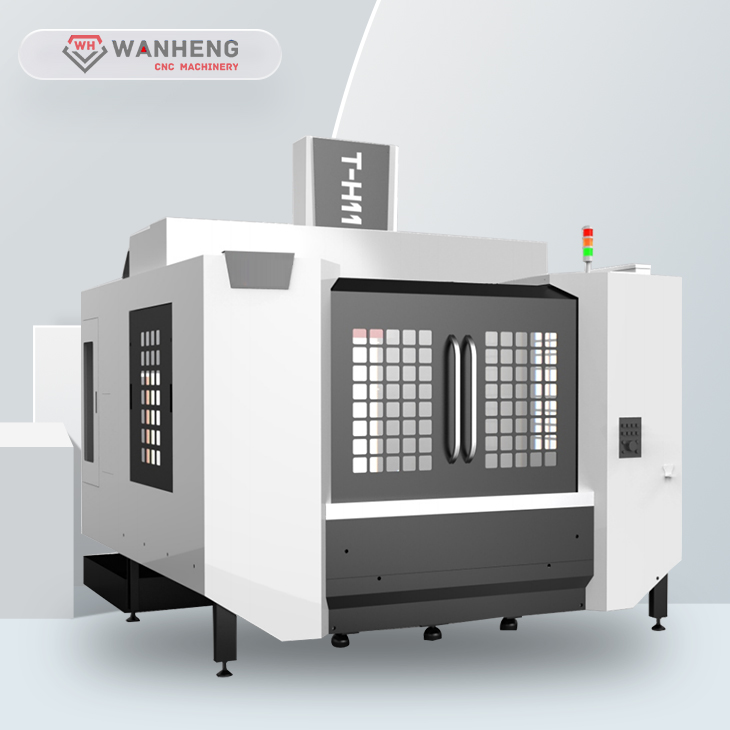

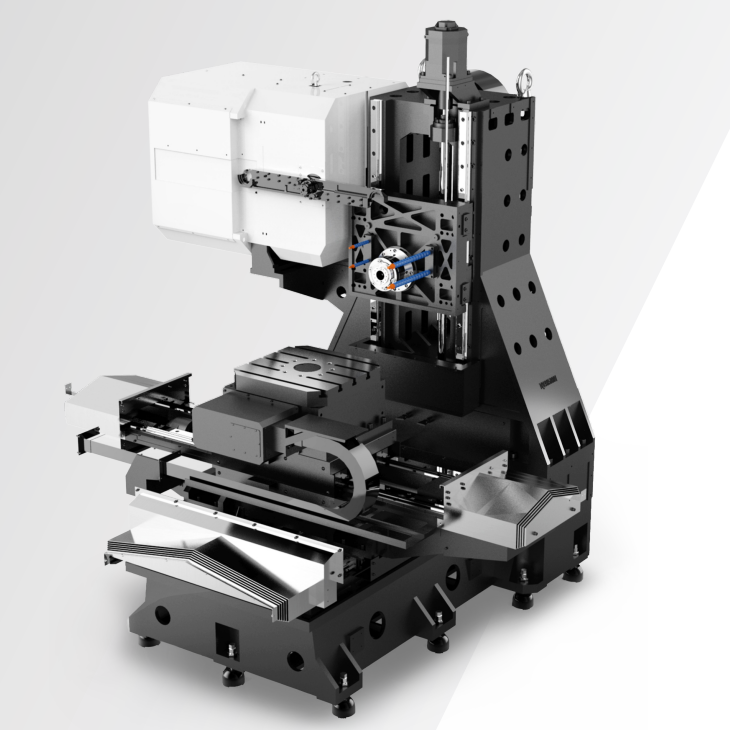

W-H11/13 Single Worktable CNC Horizontal Machining Center
W-H11/13 Single Worktable CNC Horizontal Machining Center, 4 axis milling machine center, CE, ISO Certificate
Send InquiryProduct Detail
Product Description

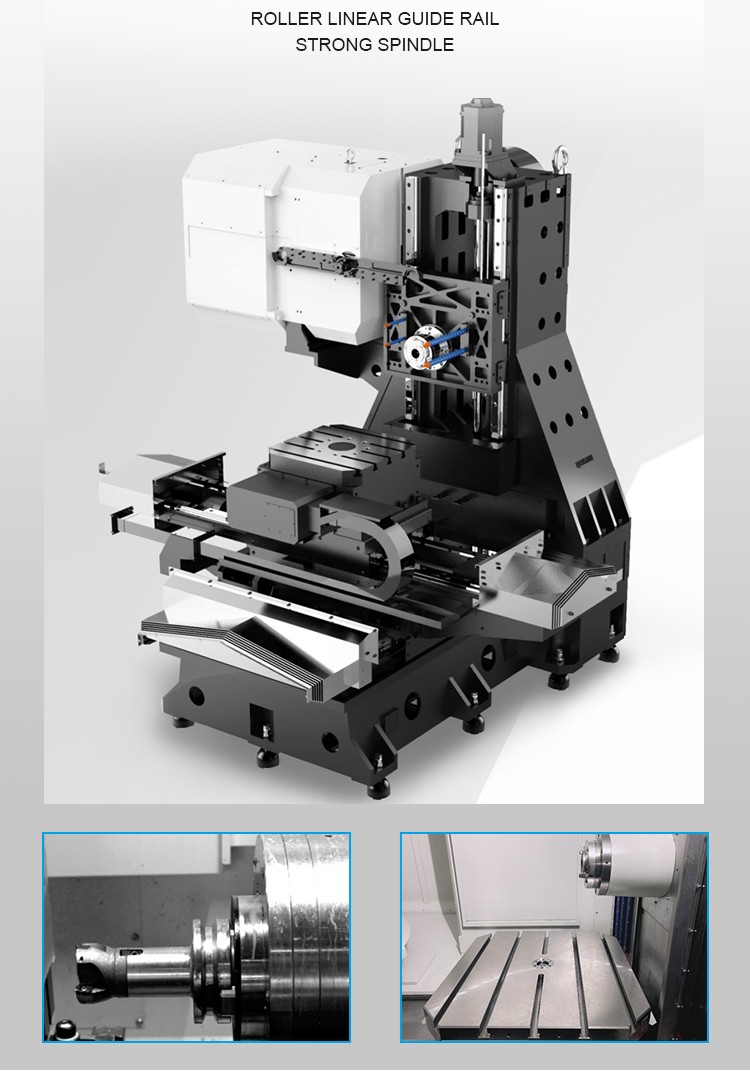

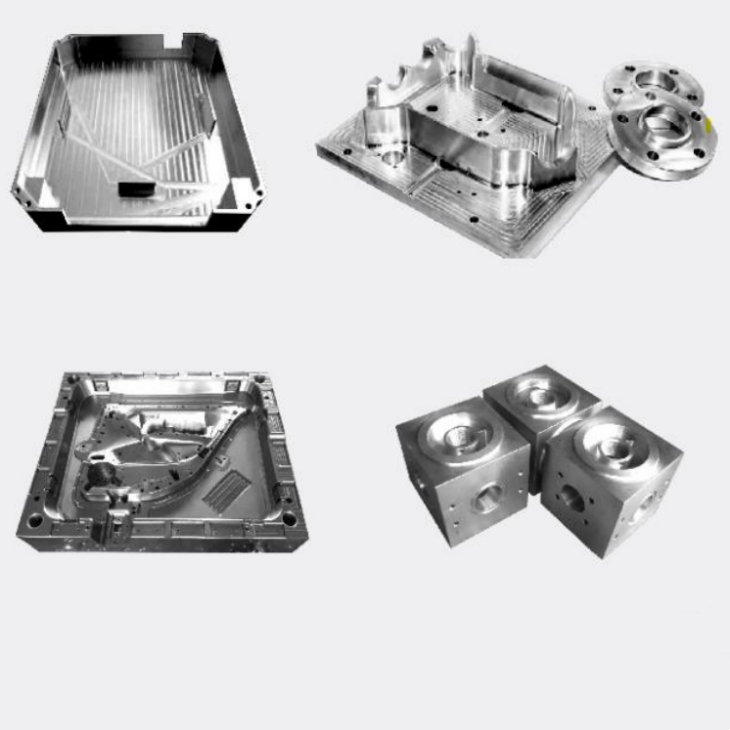

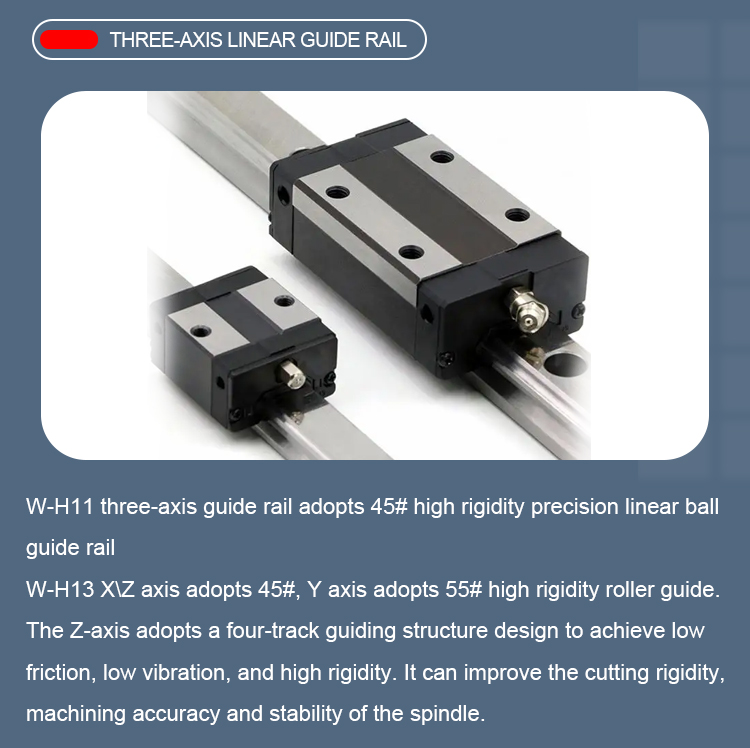

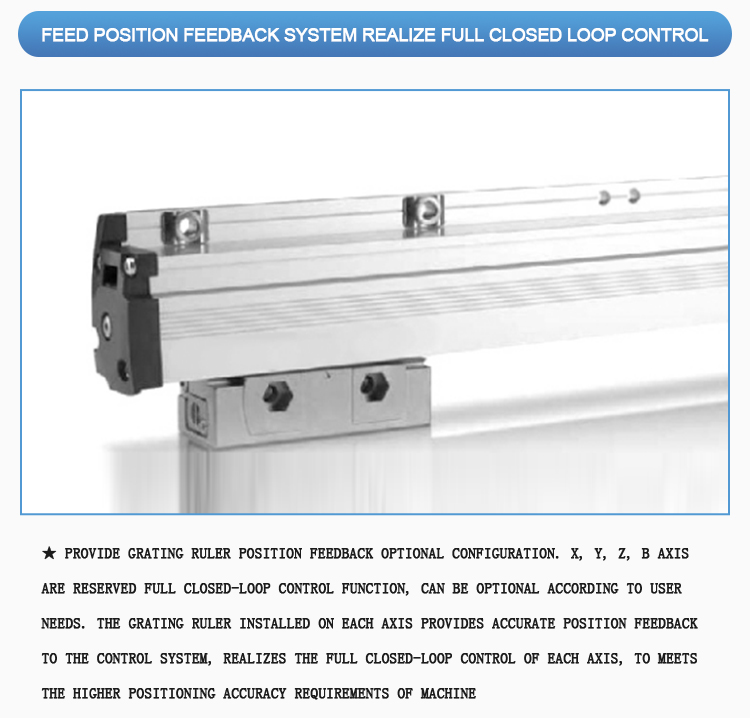

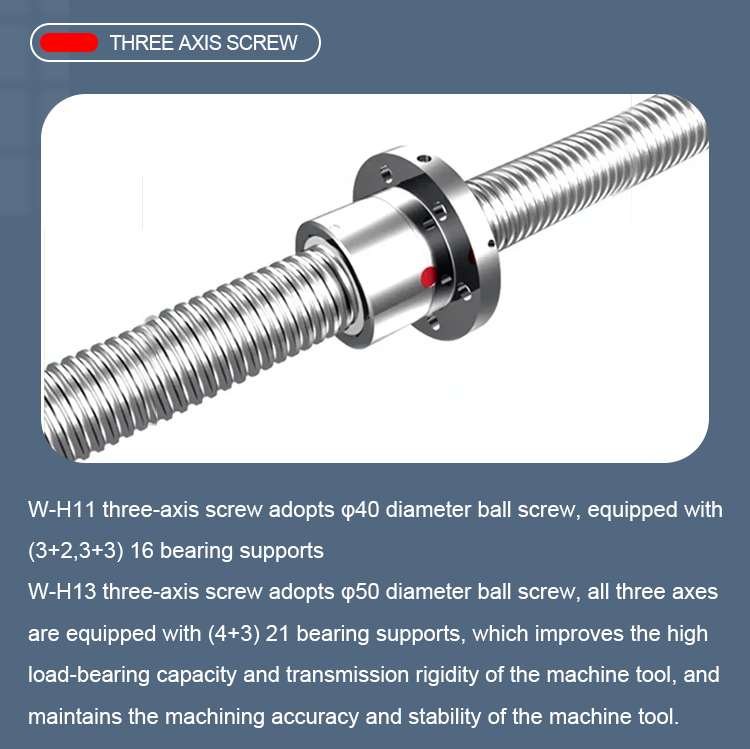

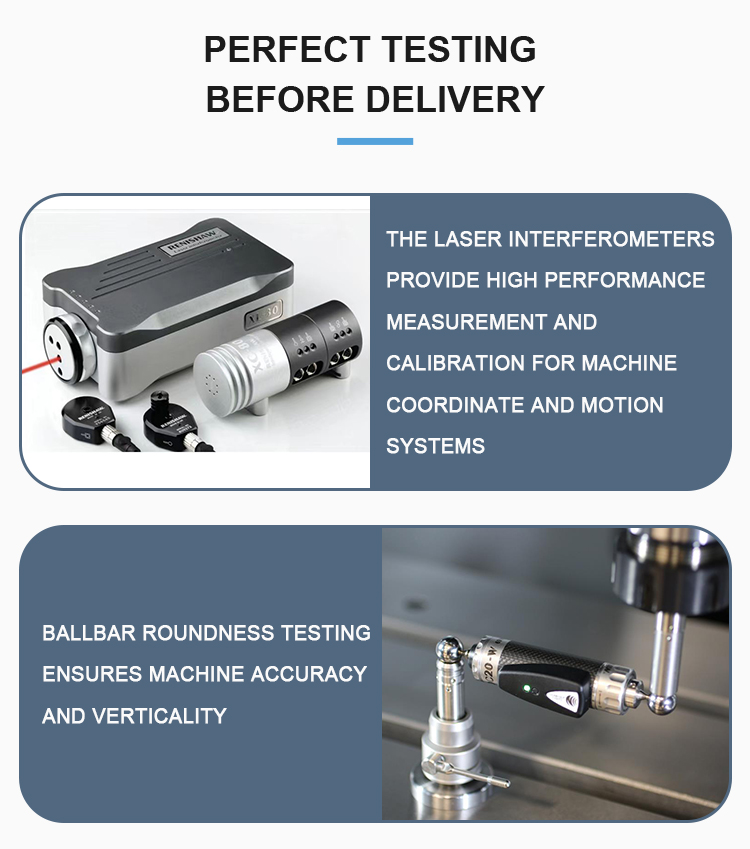

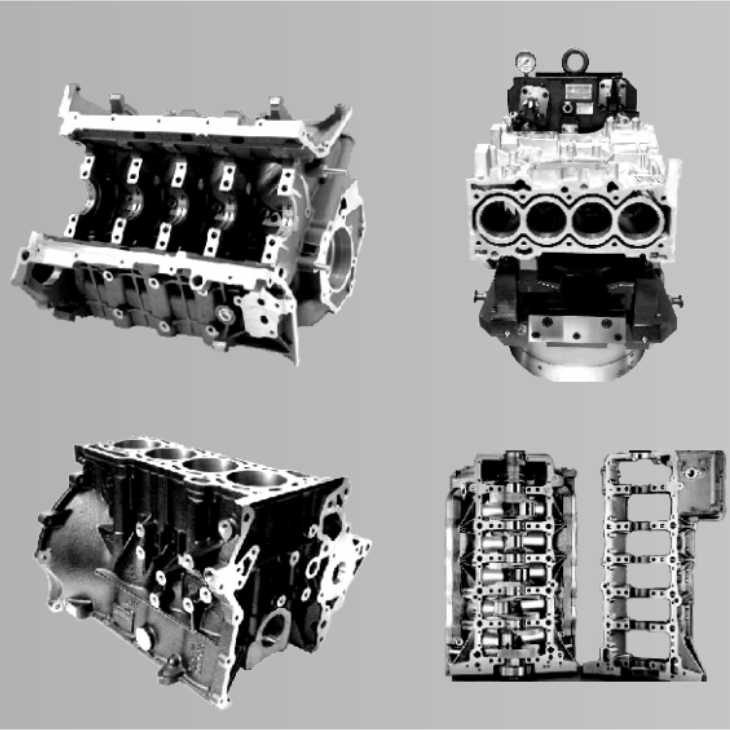

One-time clamping of parts can automatically complete the processing of multiple processes such as milling, drilling, boring, expanding, reaming, countersinking, and tapping of the four faces. Effectively improve processing efficiency and save costs, while reducing repeated installation errors and improving product processing accuracy. The machine tool adopts high-precision linear rails and screw rods. The machine tool has better dynamic response and can realize high-precision machining. Its performance indicators and accuracy indicators are in full compliance with national standards. With modular design, the products can be serialized and customized according to market demand. Its good performance-price ratio is the perfect choice for customers at home and abroad.
Product Parameter
Item | Unit | T-H11 | T-H13 | |
Traveling | X axis | mm | 1100 | 1350 |
| Y axis | mm | 600 | 850 | |
| Z axis | mm | 650 | 750 | |
| The distance from spindle end face to working table | mm | 175-825 | 90-840 | |
| Max. workpiece size | mm | φ1200×720 | φ1450×950 | |
Working table | Working table size | mm | 500*500 | 630*630 |
| Max. loading | Kg | 500 | 1200 | |

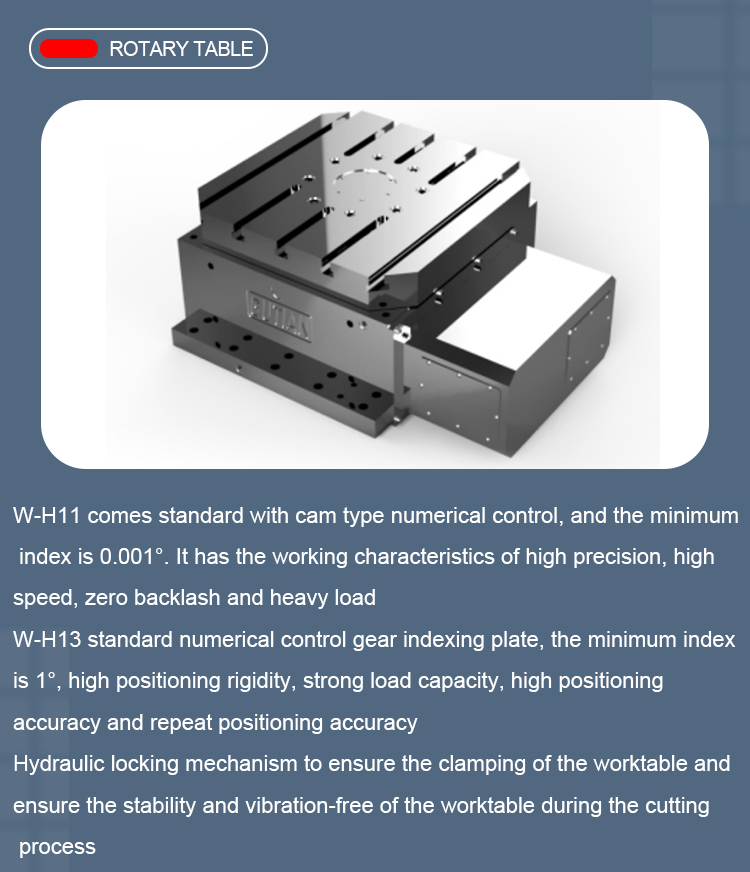

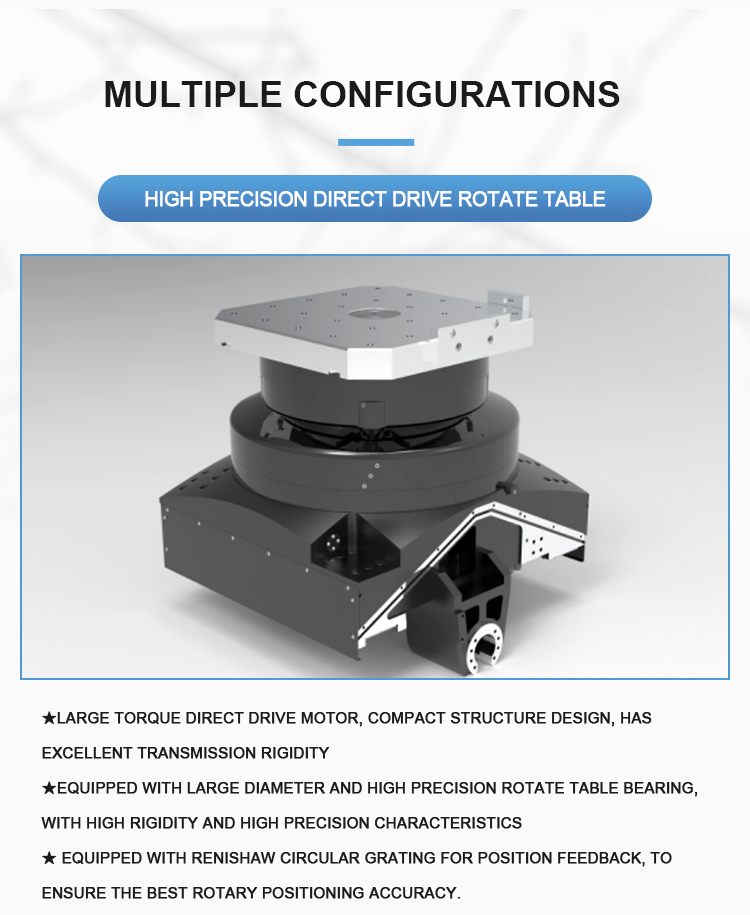

| Min. setting unit | Deg(°) | 0.001 | 1 | |

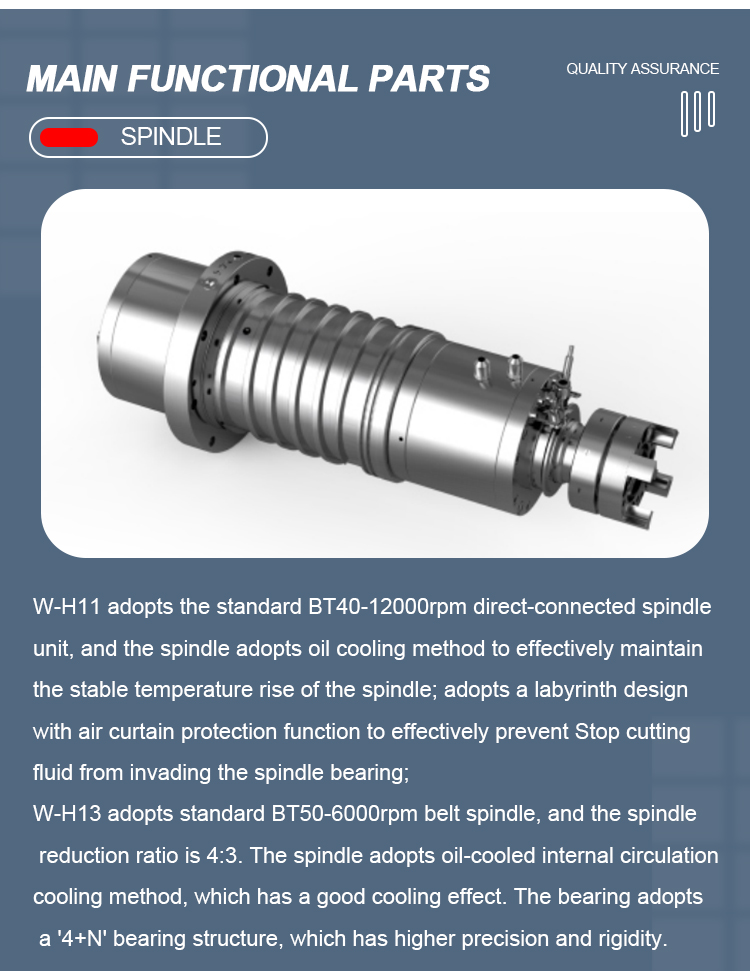

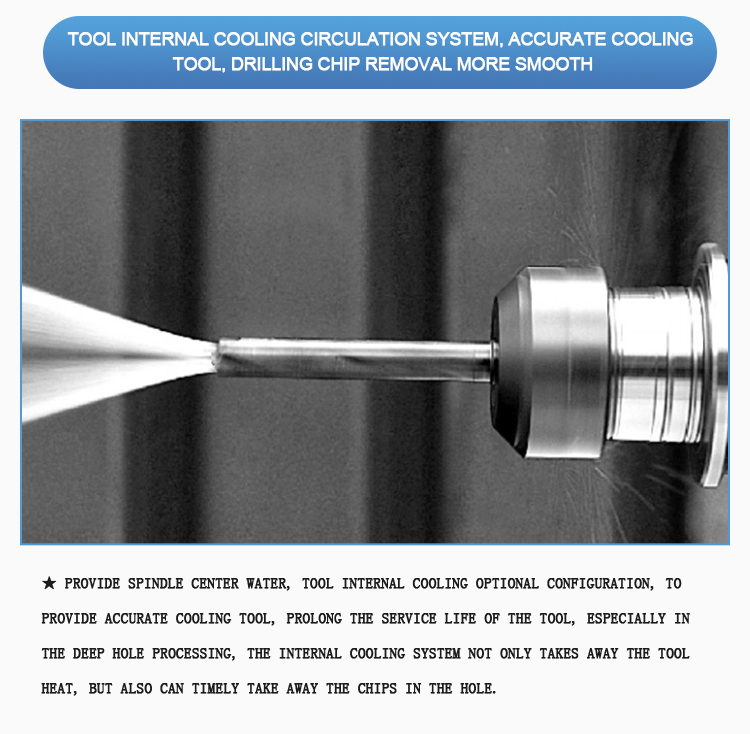

Spindle | Spindle power | KW | 7.5/11 | 15/18.5 |
| Spindle torque | N.m | 35.8/95.5 | 143/191 | |
| Spindle speed | r/min | 50~12000 | 50-6000 | |
| Spindle taper | BT40 | BT50 | ||
Speed | X/Y/Z feeding rate | mm/min | 0-8000 | 0-10000 |
| X/Y/Z rapid speed | m/min | 36/36/36 | 20/20/20 | |
Accuracy | Positioning accuracy | mm | 0.01 B:20" | 0.012 B:8" |
| Repeatability | mm | 0.007 B:10" | 0.008 B:2" | |

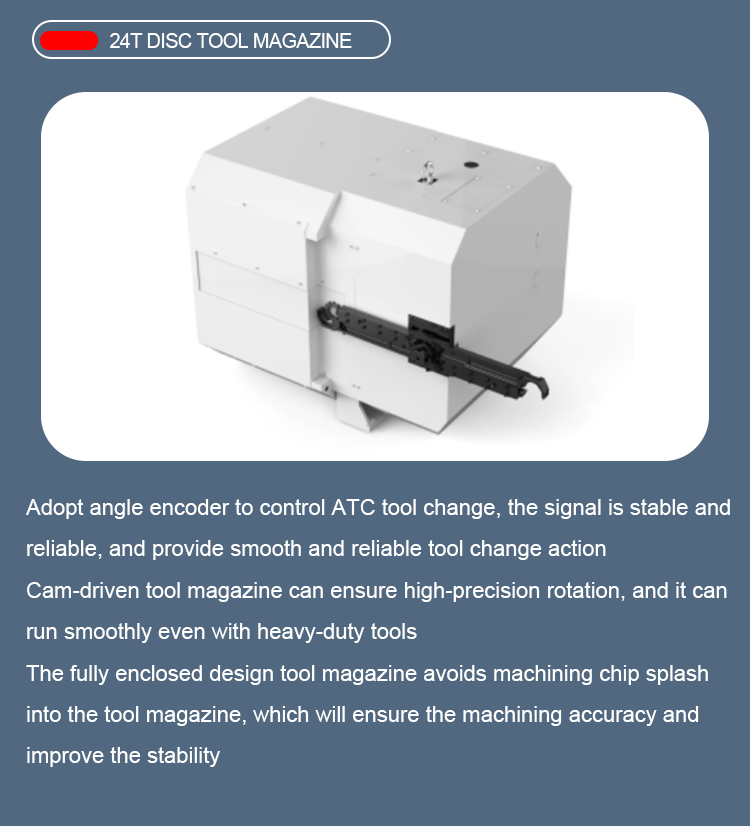

Tool | Tool magazine capacity | 24 | 24 | |
| Max. tool weight | kg | 7 | 15 | |
| Max. tool length | mm | 320 | 400 | |
Others | System | Fanuc-0i-MF(5) | Fanuc-0i-MF(5) | |
| Machine dimension(L*W*H) | mm | 3400×3000×3000 | 4242×3008×3340 | |
| Weight(about) | Kg | 6800 | 11000 | |
