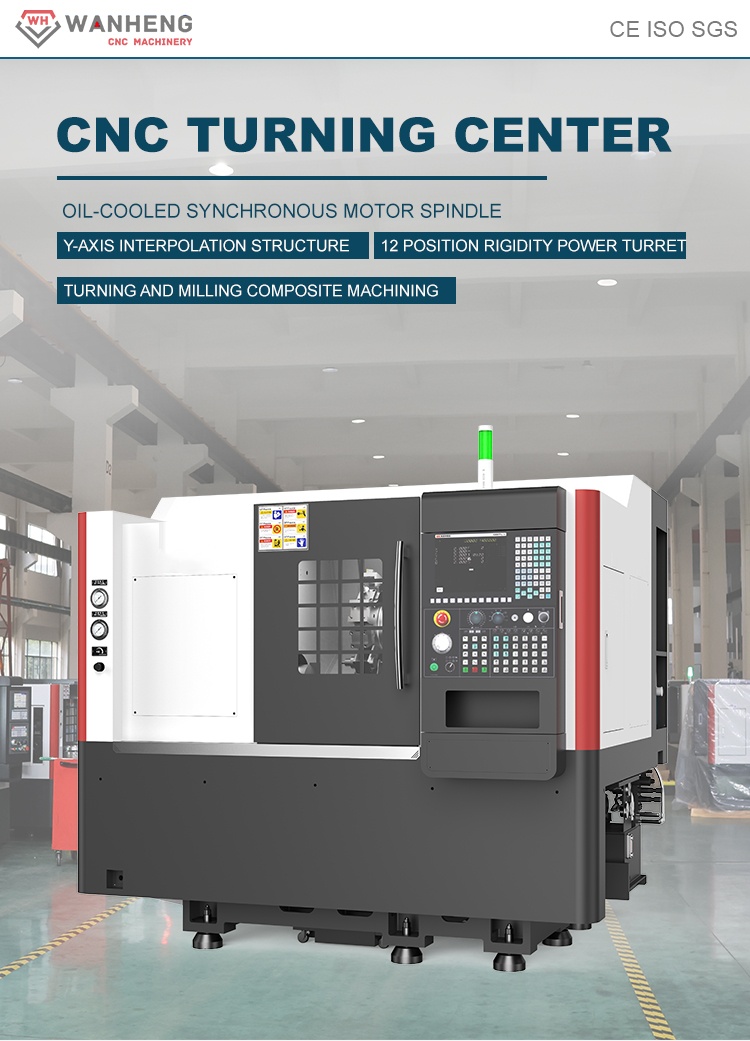

WH-T4530M CNC Turning Center
WH-T4530M CNC Turning Center, turning and milling lathe, CE ISO certificate
Send InquiryProduct Detail
Product Description
WH-T4530M is a compound Y-axis slant bed turret lathe with 15° bed and 30° slide;
The base and the bed are integrated, and the bed is made of cylinder reinforcement, which has strong rigidity and good vibration resistance;
High rigidity synthetic Y-axis structure, stable and reliable, can realize turning milling compound machining, improve machining efficiency;
Large span of guide rail, all guide rail using roller guide, so as to reduce the wear of guide rail, ensure high cutting rigidity and stability;
Spindle adopts electric spindle structure, fixed rotor and spindle, compact structure, strong rigidity, small vibration, can realize high-precision machining, to ensure the spindle high speed and stability;
Hidden hydraulic tailstock. The tailstock guide way is removable and its configuration is flexible;
Vertical and horizontal drive adopts high-performance AC servo motor with high positioning accuracy and flexible reliable action;
Cooling system provides high lift pump, high flow, high pressure, can obtain satisfactory chip cleaning and cooling effect
Automatic centralized lubrication device, lubrication is fully reliable;

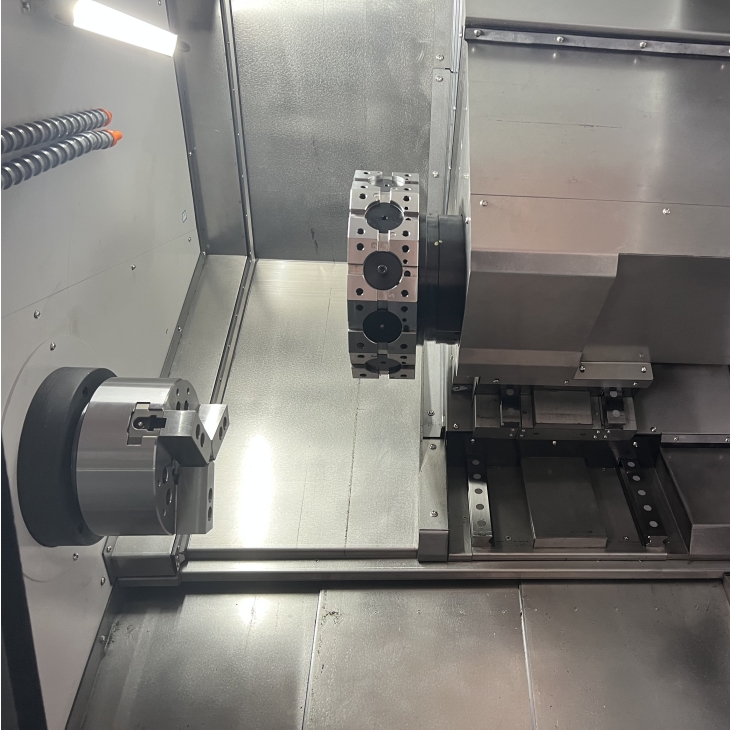

Adopt 12 station live tool, can achieve turning and milling compound processing and realize fast tool change. The tool holders adopt BMT structure with high rigidity, high repeatability accuracy and easy to change.
Adopt hydraulic hollow chuck, and the bar feeder is optional
Product Parameter
Item | WH-T4530M | |
Capacity | Swing dia. Over bed | Φ620 |
Swing dia. Over slide | Φ350 | |
Max turning Dia. | plateφ270 | |
Max. turning length | 350 mm | |
Travel | X | 220 mm |
Z | 385 mm | |
Y | Y:+50,Y:-16(Spindle center) | |
C | 360° | |
Headstock | Spindle speed | 5000 r/min |
Spindle nose | A2-6 | |
Spindle bore | Φ56 | |
Tailstock | Tailstock quill travel | 120 mm |
Tailstock quill diameter | 85 | |
Tailstock taper | MT5 | |
Live tool turret | Type | Live turret |
Number of tools | 12 | |
Tool shank dimensions | 25*25 mm | |
Boring tool size | Φ32 | |
Drive motor power | 3.9 kw | |
Drive motor torque | 18.6 N.m | |
Maximum speed | 4000 r/min | |
Max.milling capacity | Milling tool dia.*Milling depth*FeedΦ16mmx8mmx30mm/min | |
Max.drilling capacity | Drill dia.*Feed Φ14X0.25 | |
Max.tapping capacity | Tapping:M10*1.5 | |
Fixture | Hydraulic | 6’ |
Rapid speed | X | 24 m/min |
Z | 24 m/min | |
Y | 10 m/min |
