Product Description

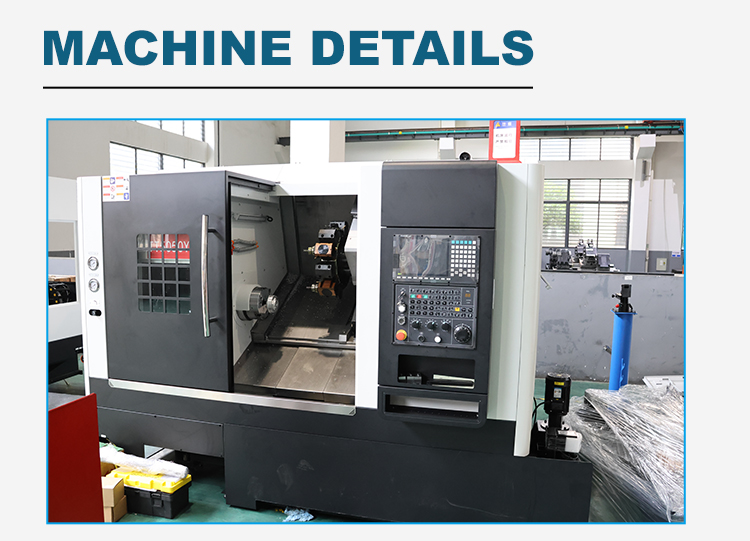

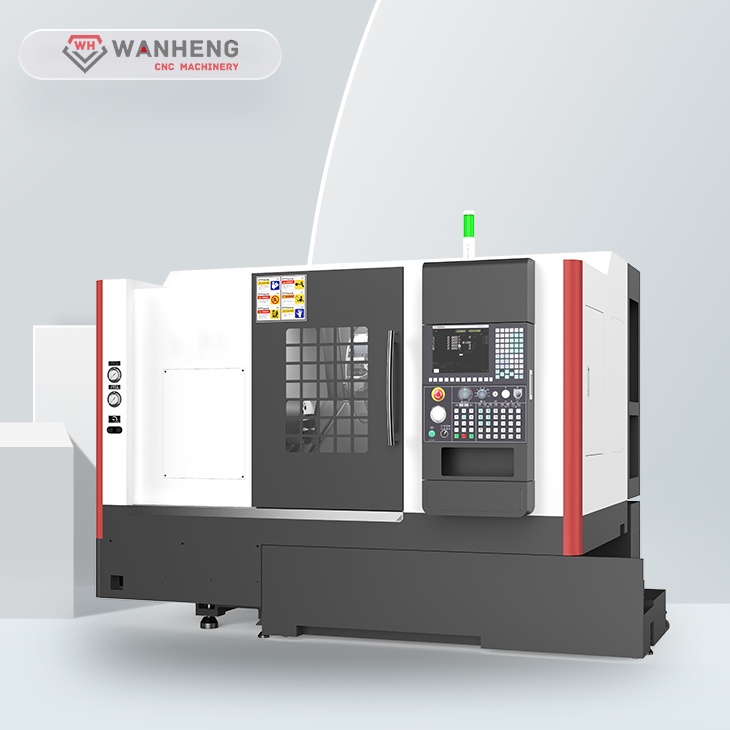

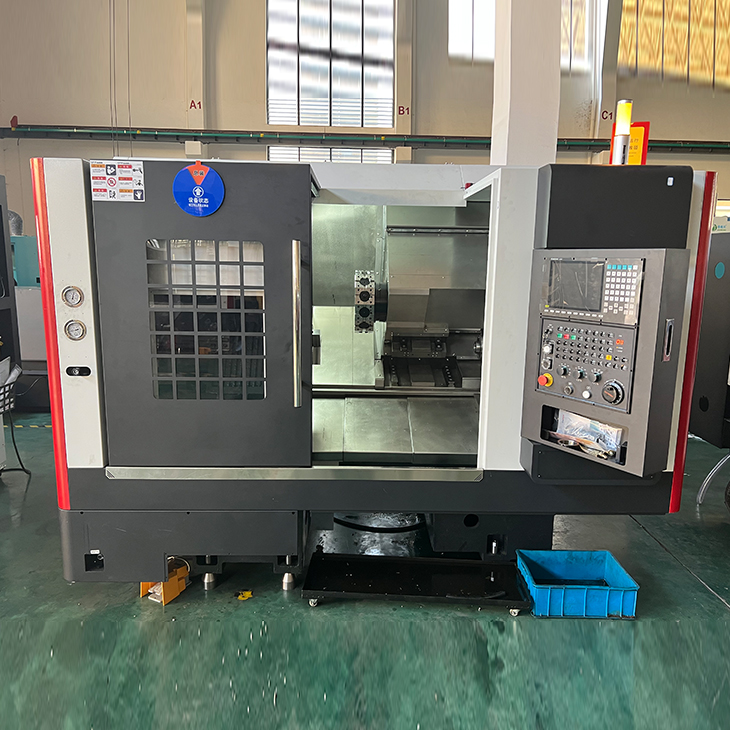

WH-T5050M CNC lathe is a slant bed turret lathe, 15°overall slant bed, guide way span is large, use roller guide way to ensure high cutting rigidity and stability;
The machine bed adopts cylinder reinforcement which has strong rigidity and good vibration resistance;
High rigidity synthetic Y-axis structure, stable and reliable, can realize turning milling compound machining, improve machining efficiency;
The front end bearing of the spindle is composed of angular contact thrust ball bearing and double row cylindrical roller bearing, and the back end is double row cylindrical roller bearing, which not only guarantees the high speed of the spindle but also guarantees the high rigidity and stability of the spindle;
Adopt programmable built-in spindle, achieve fast dock workpiece. One clamping, complete two sequence processing;
Vertical and horizontal drive adopts high-performance AC servo motor with high positioning accuracy and flexible reliable action;
Cooling system provides high lift pump, high flow, high pressure, can obtain satisfactory chip cleaning and cooling effect;
Automatic centralized lubrication device, lubrication is fully reliable;

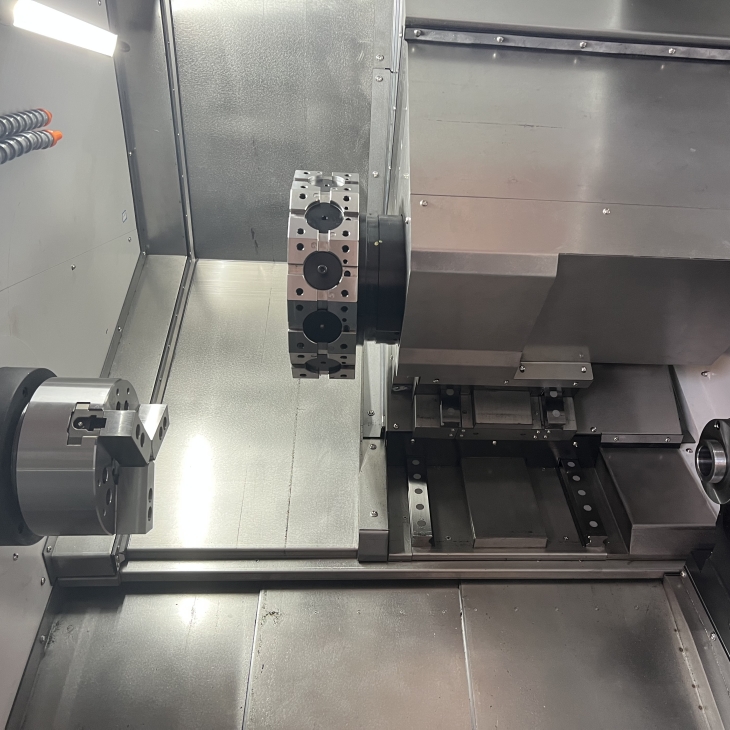

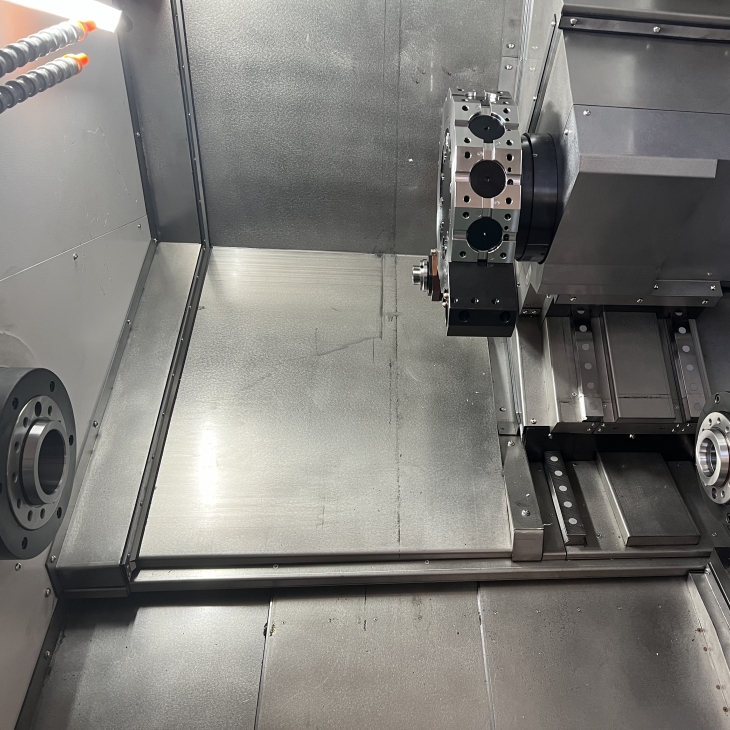

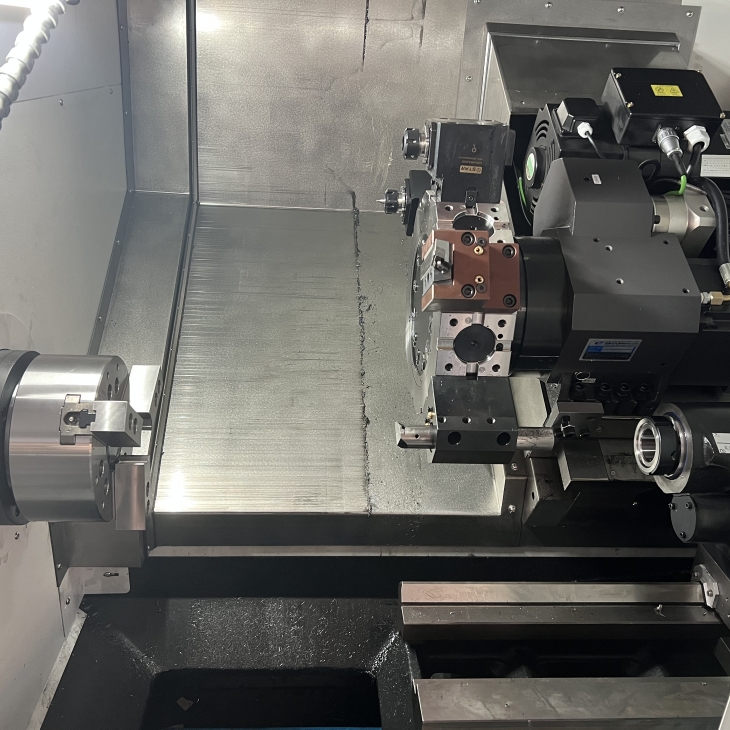

Adopt 12 station live tool, can achieve turning and milling compound processing and realize fast tool change. The tool holders adopt BMT structure with high rigidity, high repeatability accuracy and easy to change;
Adopt hydraulic hollow chuck, and the bar feeder is optional.

Product Parameter

•

  WH-T5050M Servo Tailstock CNC Turning Center

•

  WH-T4530M CNC Turning Center
