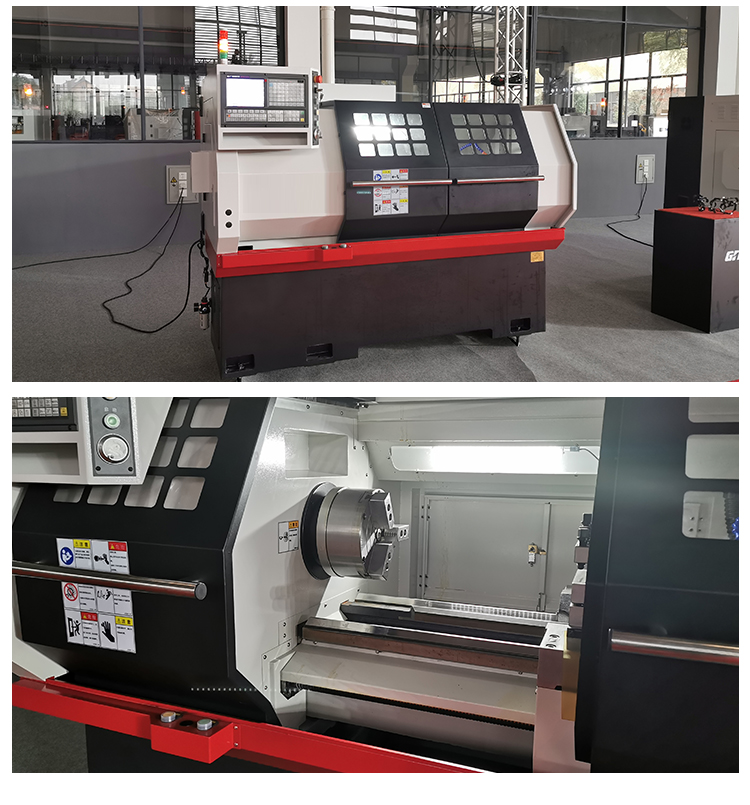

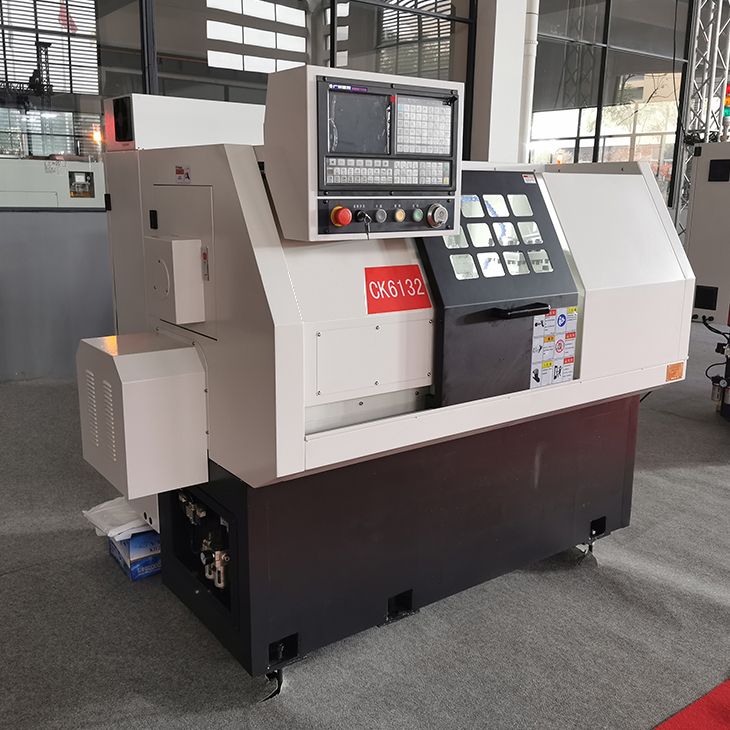

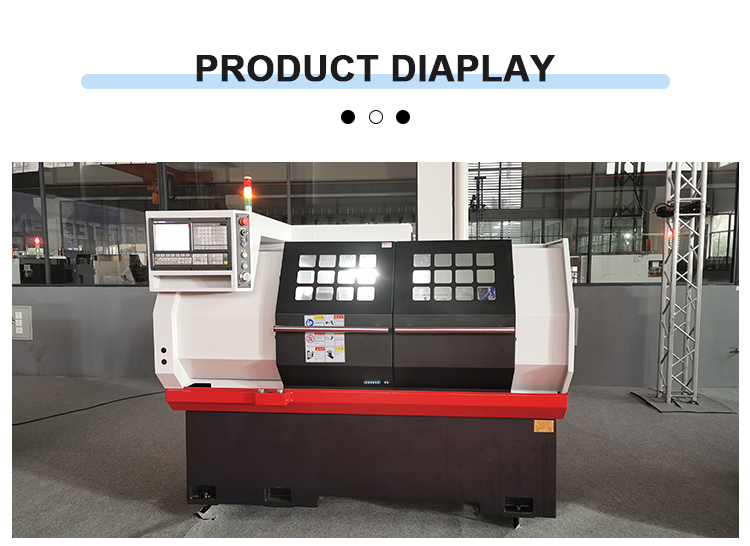

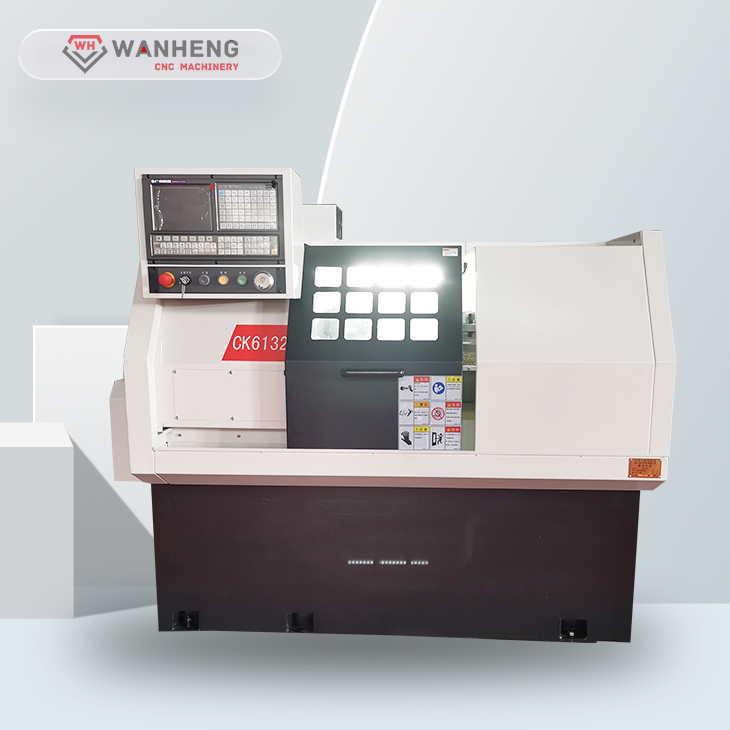

CK6132 Flat Bed CNC Lathe
CK6132 Flat Bed CNC Lathe, horizontal CNC turret lathe, with CE ISO certificate
Send InquiryProduct Detail
Product Description

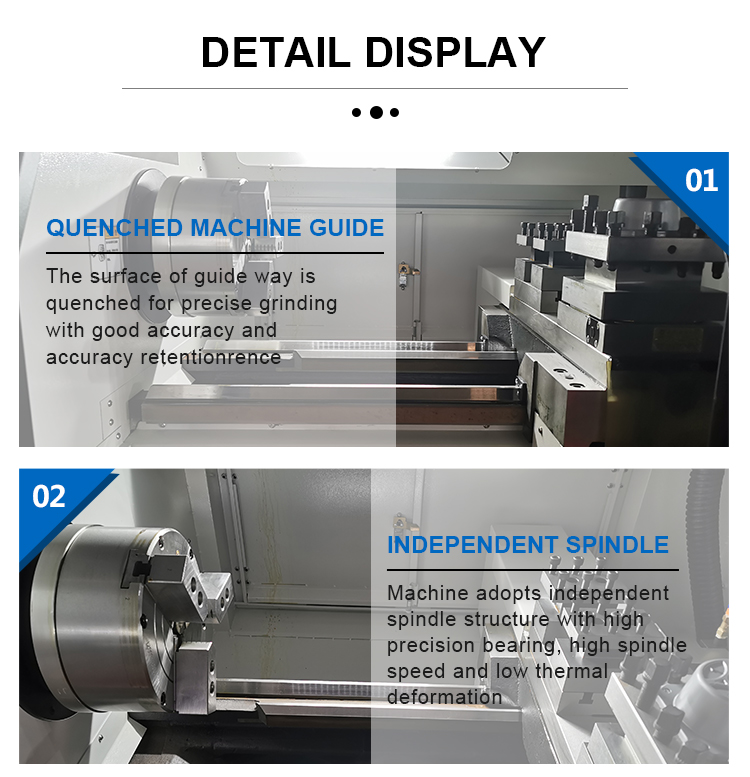

The machine adopts the horizontal flat bed structure, and the surface of guide way is quenched for precise grinding with good accuracy and accuracy retention.
Machine adopts independent spindle structure with high precision bearing, high spindle speed and low thermal deformation;
The machine adopts integral bed foot and semi-enclosed protective structure. The whole machine is rigid and convenient to use tailstock;

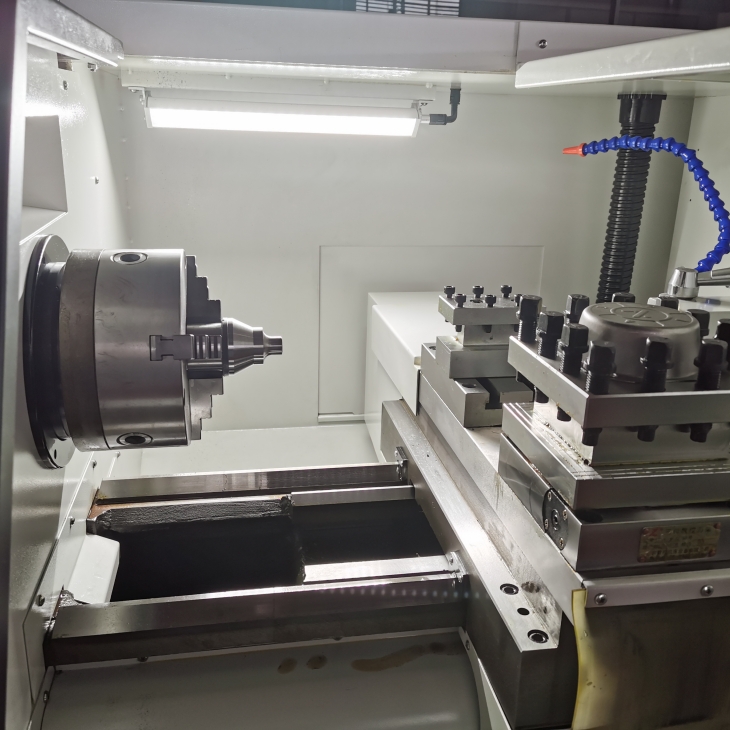

The machine adopts the standard vertical 4 station electrical tool post or horizontal 6 station electrical tool post or gang type tool post;
Machine adopts the ergonomic design and requirements with low maintenance cost, and easy to operate；

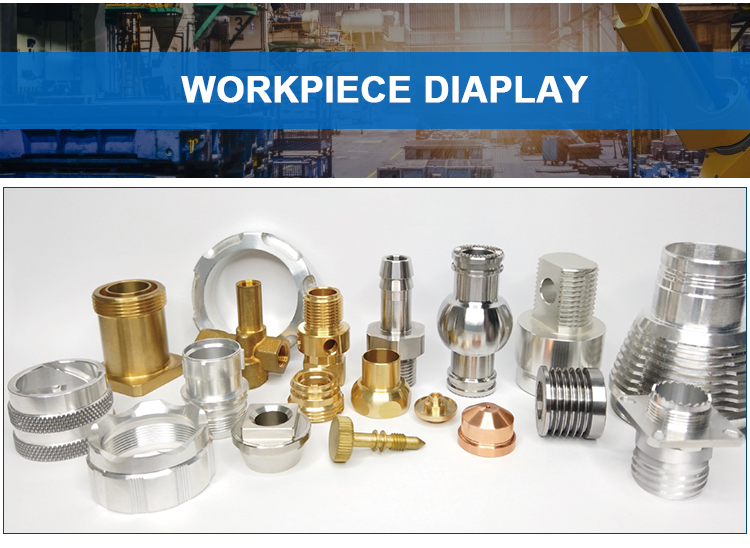

The machine is suitable for processing all kinds of shaft type, disc type and small batch parts with complex shape, and it is more suitable for mass production of parts with high precision and size consistency.
Product Parameter
Item | CK6132 |
Swing diameter over bed | Φ340 mm |
Swing diameter over slide | Φ140 mm |
X/Z axis travel | 200/300 mm |
Bar through hole | Φ35 mm/Φ40 mm |
Spindle speed | 3500 r/min |
X/Z axis rapid travel speed | 8/10 m/min |
X/Z servo motor torque | 4/4 N.m |
Clamping | Manual/Pneumatic |
Tools | Electric tool post |
Tool shank dimension | 20*20 mm |
Boring tool size | Φ20 mm |
Chuck size | Collet |
Repeatability accuracy X/Z axis | 0.005/0.006 mm |
Tailstock quill diameter | Φ43 mm |
Tailstock quill travel | 90 mm |
Tailstock quill taper | MT3 |
Total power consumption | 5.62 KVA |
Overall dimensions(L*W*H) | 1465*1150*1370 mm |
Weight | 850 kg |
