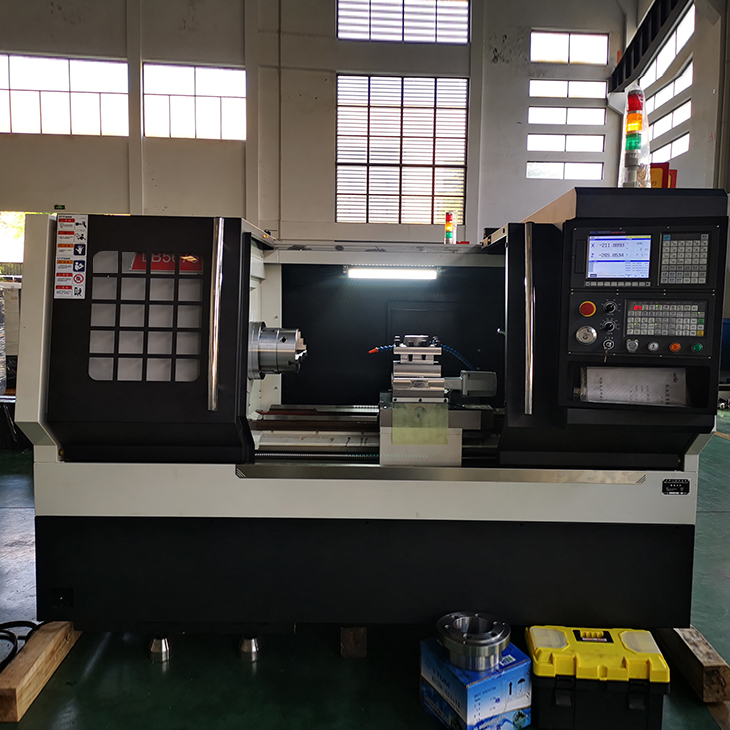

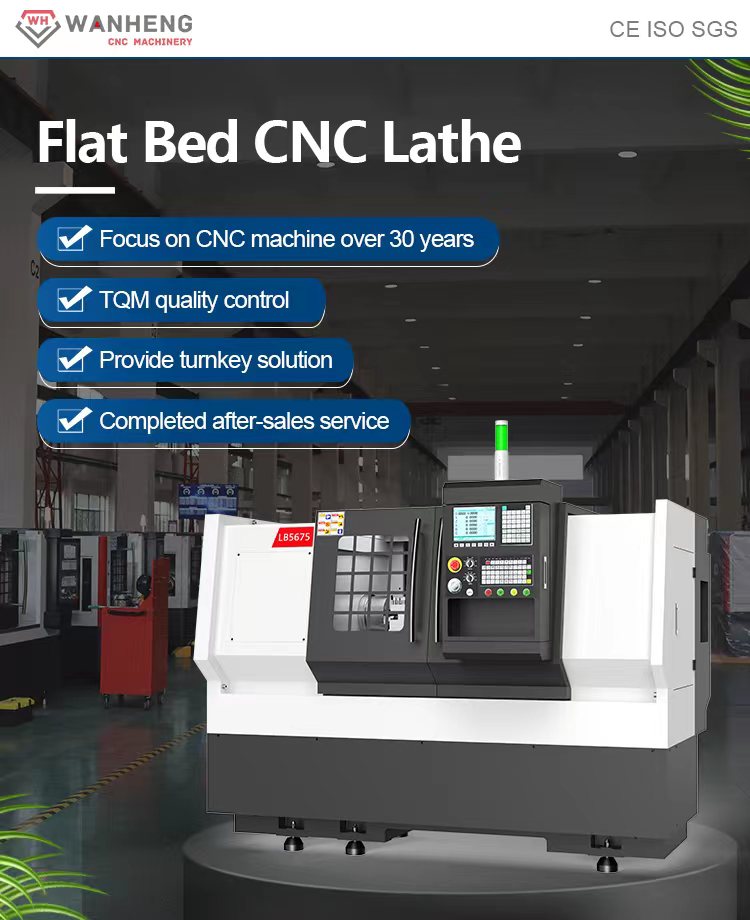

CK6156 Flat Bed CNC Lathe
CK6156 Flat Bed CNC Lathe, horizontal CNC turret lathe, with CE ISO certificate
Send InquiryProduct Detail
Product Description

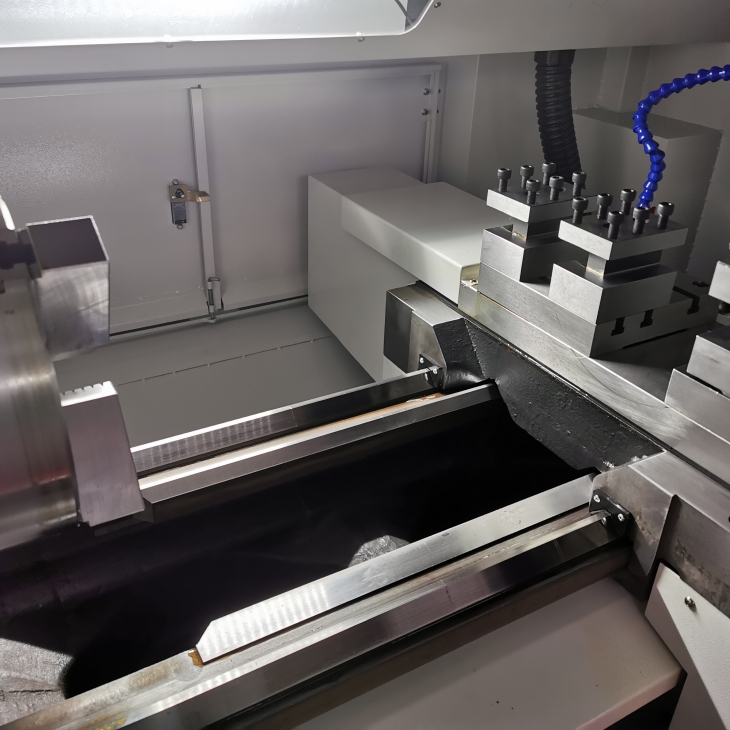

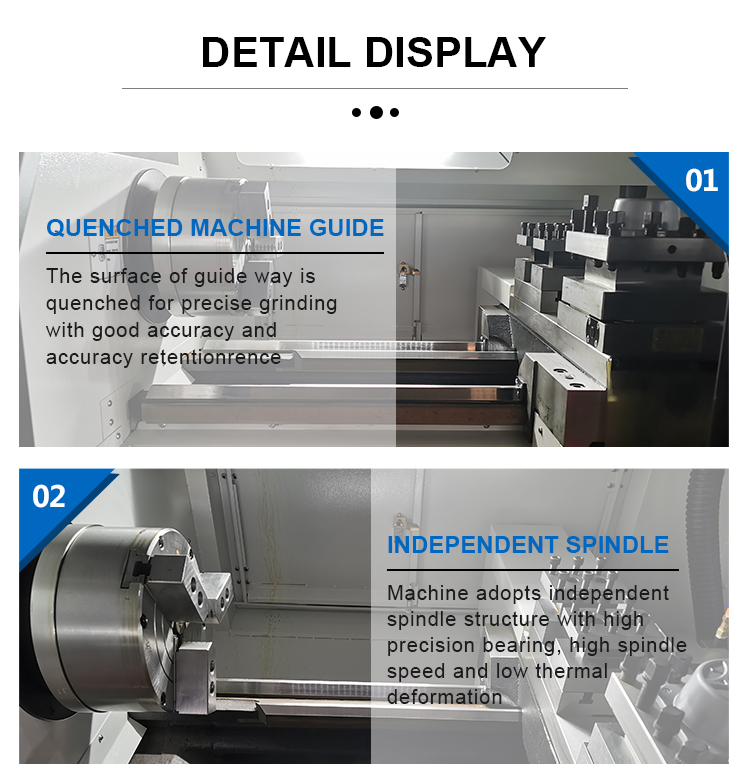

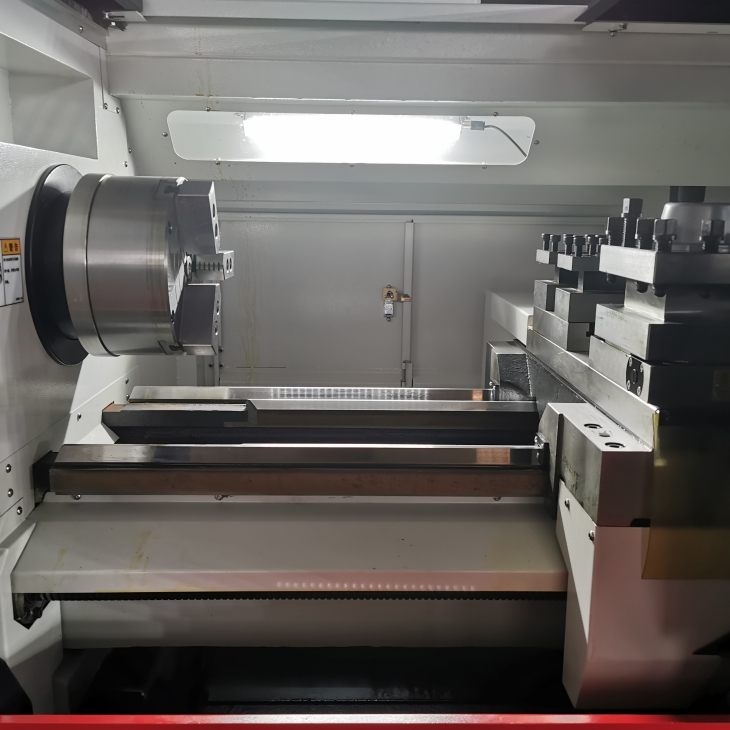

The machine adopts the horizontal flat bed structure, and the surface of guide way is quenched for precise grinding with good accuracy and accuracy retention.
Machine adopts independent spindle structure with high precision bearing, high spindle speed and low thermal deformation;

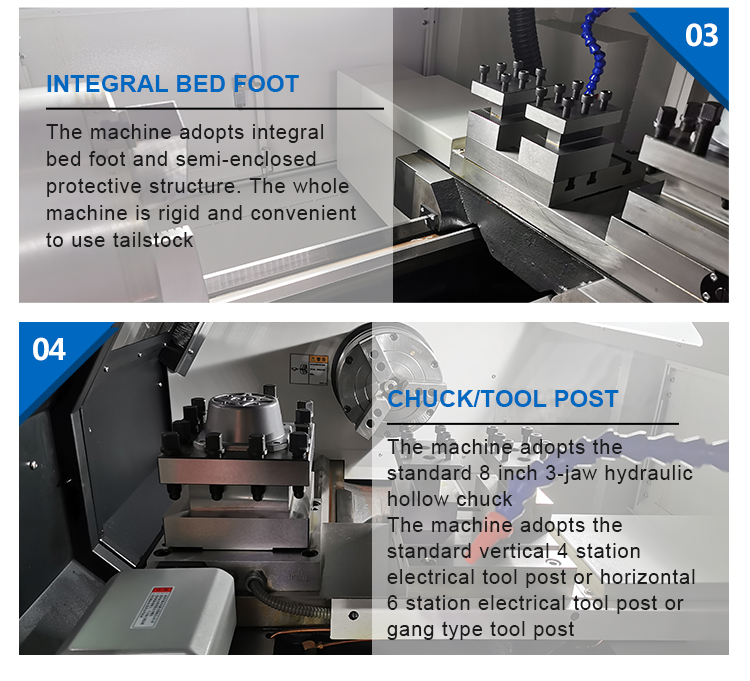

The machine adopts integral bed foot and semi-enclosed protective structure. The whole machine is rigid and convenient to use tailstock;

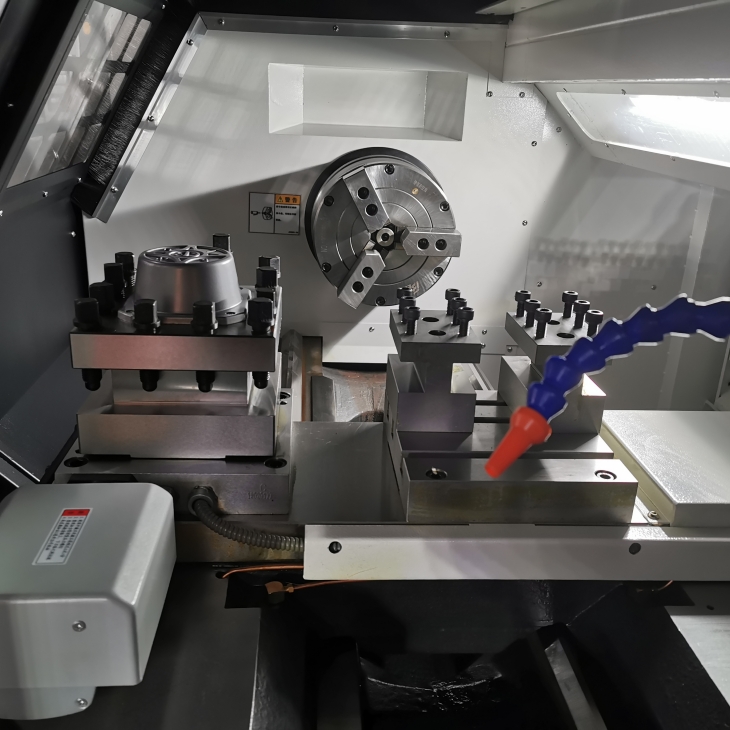

The machine adopts the standard vertical 4 station electrical tool post or horizontal 6 station electrical tool post or gang type tool post;
Machine adopts the ergonomic design and requirements with low maintenance cost, and easy to operate；
The machine is suitable for processing all kinds of shaft type, disc type and small batch parts with complex shape, and it is more suitable for mass production of parts with high precision and size consistency.
Product Parameter
Item | CK6156 |
Swing diameter over bed | Φ560 mm |
Swing diameter over slide | Φ300 mm |
X/Z axis travel | 300/750 mm |
Bar through hole | Φ74 mm |
Spindle speed | 3000 r/min |
X/Z axis rapid travel speed | 10/10 m/min |
X/Z servo motor torque | 7.5/10 N.m |
Clamping | Manual/Hytraulic |
Tools | Electric/gang type tool post |
Tool shank dimension | 25*25 mm |
Boring tool size | Φ32 mm |
Chuck size | 8 inck manual chuck |
Repeatability accuracy X/Z axis | 0.006/0.006 mm |
Tailstock quill diameter | Φ75 mm |
Tailstock quill travel | 190 mm |
Tailstock quill taper | MT5 |
Total power consumption | 12.38 KVA |
Overall dimensions(L*W*H) | 2410*1570*1710 mm |
Weight | 2500 kg |
