WH-T7580 Slant Bed CNC Lathe
WH-T7580 Slant Bed CNC Lathe, horizontal CNC lathe, with CE ISO certificate
Send InquiryProduct Detail
Product Description

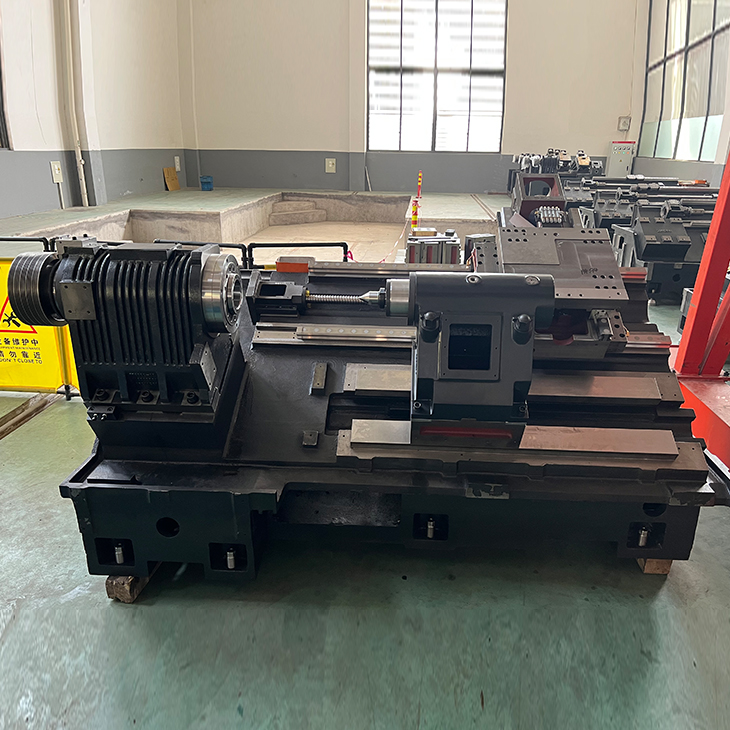

WH-T7580 is a slant bed turret CNC lathe which the base and bed are integrated. Horizontal bed with 30° saddle layout.

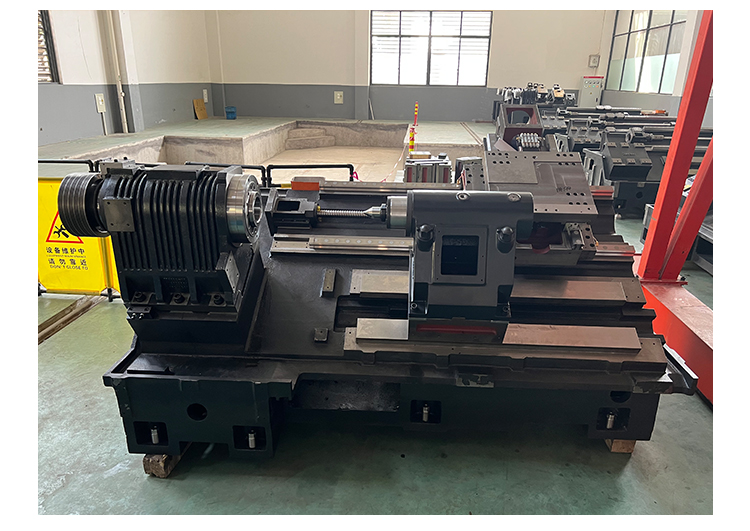

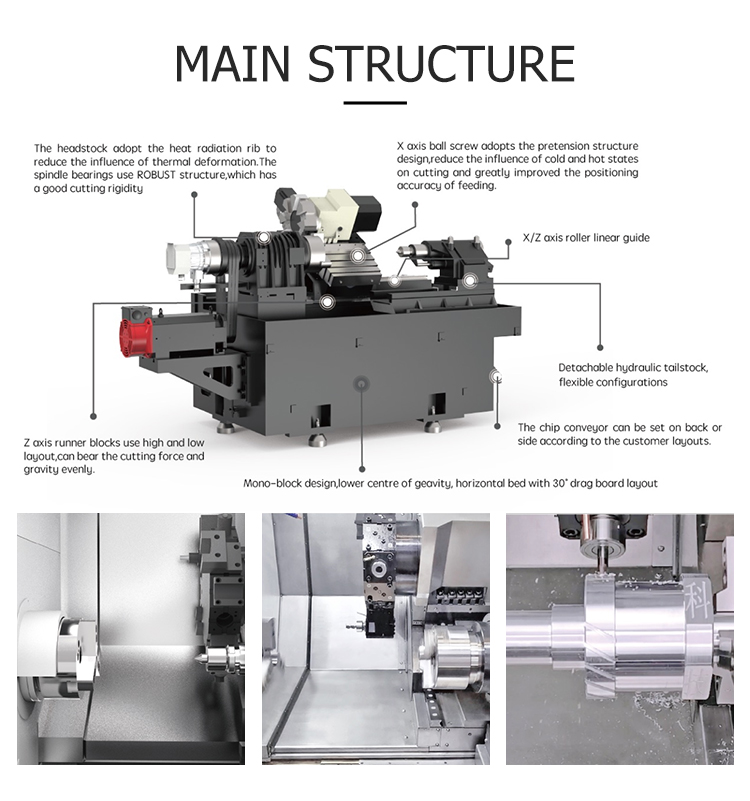

The bed adopts a step-up structure, the Z-direction roller guide is arranged in height, and the 4 sliders evenly bear the gravity and cutting force of the saddle.
Thereby reducing the wear of the guide rail and extending the service life of the guide rail;

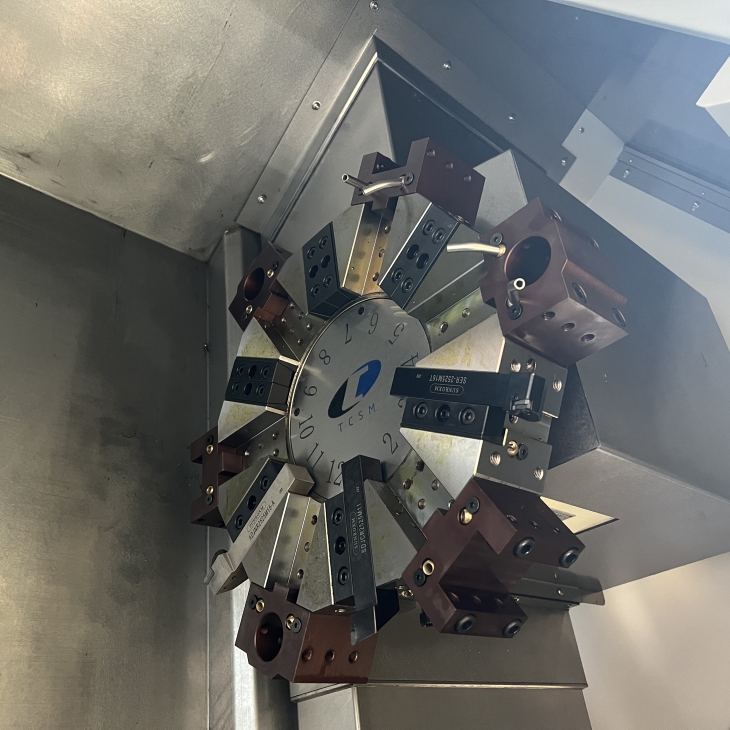

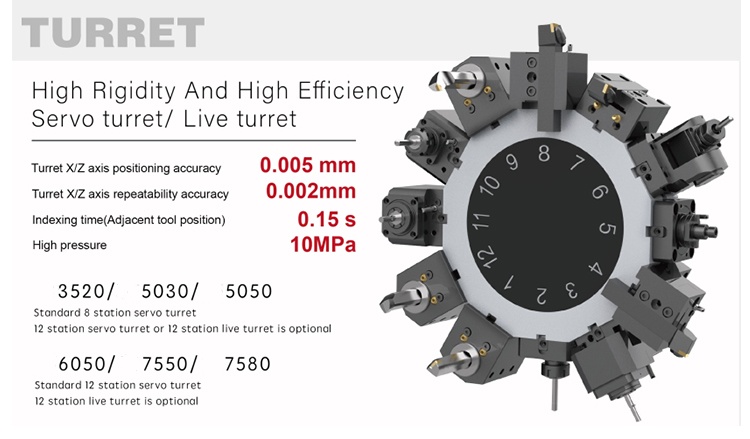

Large size servo turret, equip with 32 tool shank dimension, Φ50 boring tool holder, which ensure the high rigidity when making heavy cutting;
Using the latest environmental design, the machine tool lubricating oil is collected independently to avoid secondary pollution to the cutting fluid
Hidden hydraulic tailstock. The tailstock guide way is removable and its configuration is flexible

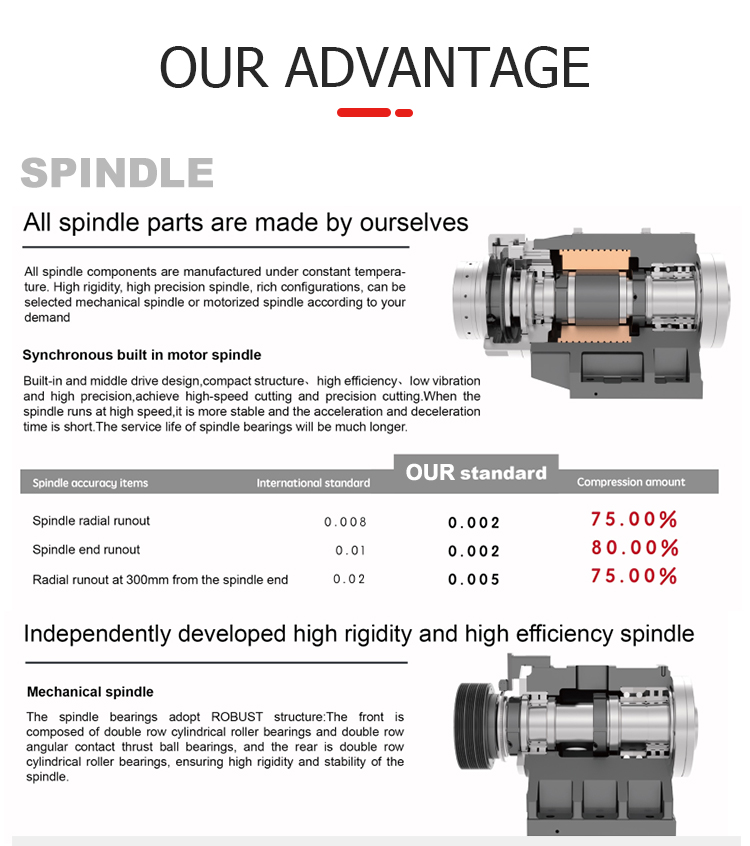

Vertical and horizontal drive adopts high-performance AC servo motor with high positioning accuracy and flexible reliable action;
Automatic centralized lubrication device, lubrication is fully reliable;
Product Parameter
Item | Unit | WH-T7580 | |
Capacity | Swing dia. Over bed | mm | Φ650 |
| Swing dia. Over slide | mm | Φ400 | |
| Max turning Dia. | mm | plateφ500 | |
| Max. turning length | mm | 800 | |
Travel | X | mm | 280 |
| Z | mm | 860 | |
Headstock | Spindle speed | r/min | 3000 |
| Spindle nose | A2-8 | ||
| Spindle bore | mm | Φ92 | |
Tailstock | Tailstock quill travel | mm | 150 |
| Tailstock quill diameter | mm | Φ130 | |
| Tailstock taper | MT | MT5 | |
Tool post | Type | 125/12T servo turret | |
| Tool shank size | mm | £32 | |
| Max boring tool dia. | Φ50 | ||
Fixture | Hydraulic | mm | 10 inch |
Rapid speed | X | m/min | 24 |
| Z | m/min | 24 | |
Overall dimensions (length*width*height) | mm | 3365×1970×1800 | |
Weight | N.W. | kg | 5500 |
