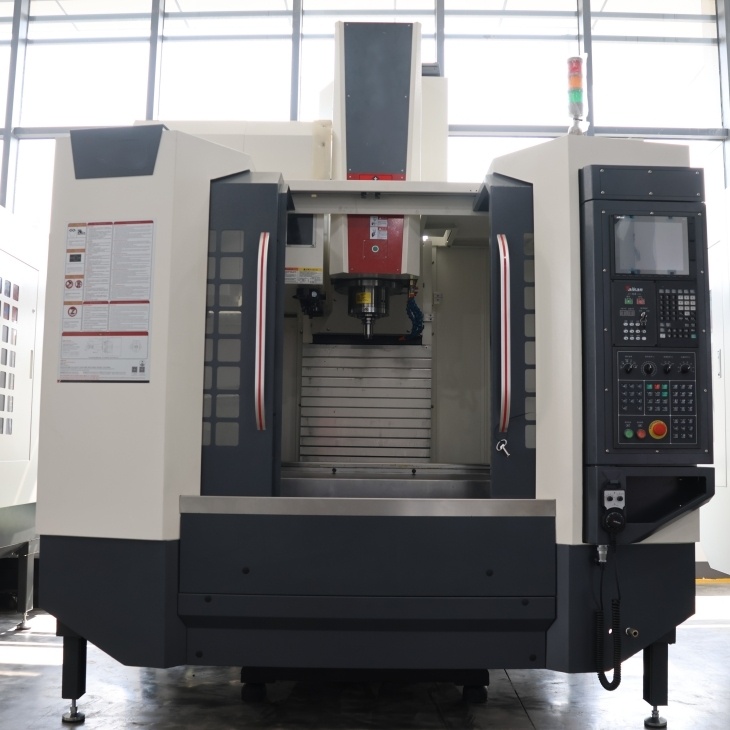

VMC856S CNC Vertical Machine Center
VMC856S CNC Vertical Machine Center, 3 axis milling machine center, CE, ISO Certificate
Send InquiryProduct Detail
Product Description

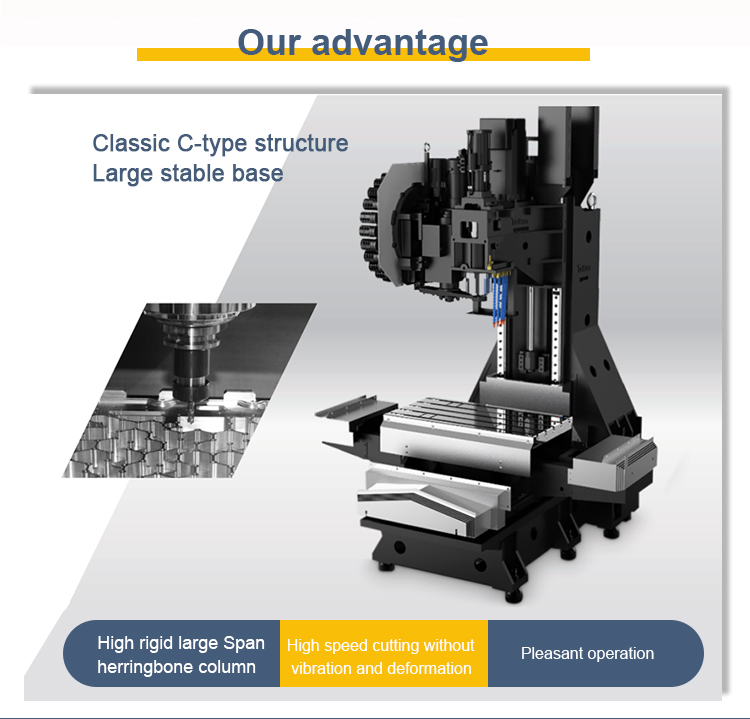

VMC856S linear rail type vertical machining center is a small and medium size machine tool, the workpiece can be automatically and continuously finished after a clamping milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes, the machine tool is suitable for small and medium-sized box type, plate type, disk type, valve type, shell type, mold and other complex parts of multi-species of small and medium batch processing. The machine adopts high precision linear rail and ball screw, the machine has better dynamic responsiveness, can achieve high speed cutting.
Working Environment
(1) Three-phase AC power supply :380 V±5%;50 HzV±1 Hz, main power line 8 mm² or larger, ground wire 8 or larger.
(2) Ambient temperature :8~40 Cº.
(3) Relative humidity :≤80 per cent.
(4) Keep away from light source, vibration source and heat source, keep away from high frequency generator, discharge motive, welding machine, etc., avoid electrical interference to make machine tool NC system malfunction
Product Parameter
Item | Unit | VMC856S | |
Traveling | X axis | mm | 800 |
| Y axis | mm | 550 | |
| Z axis | mm | 600 | |
| The distance from spindle end to working table | mm | 125～725 | |

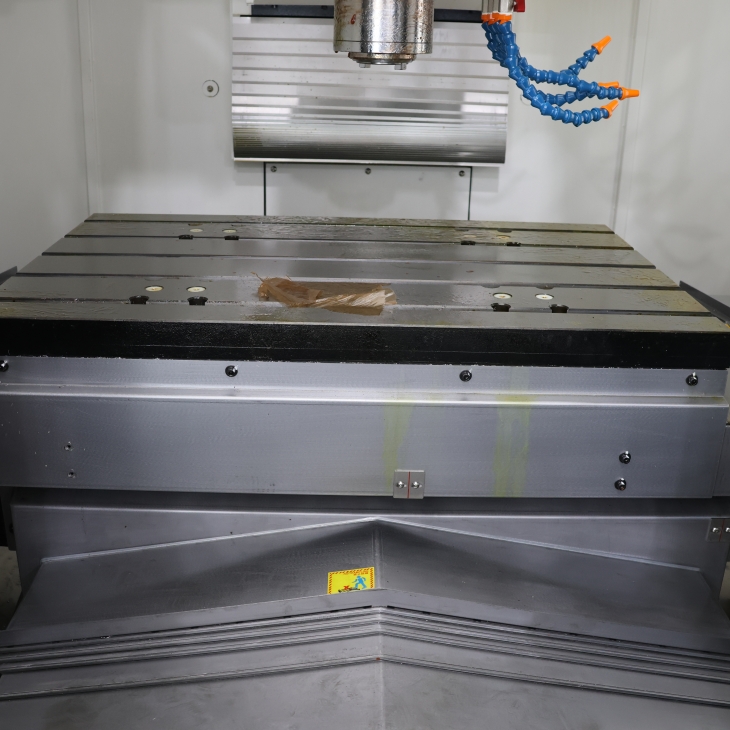

Working table | Working table size | mm | 1000*500 |
| Max. loading | Kg | 500 | |
Spindle | Spindle power | Kw | 7.5/11 |
| Spindle torque | N.m | 35.8/95.5 | |
| Spindle speed | r/min | 50~12000 (Direct) | |
| Spindle taper | / | BT40 | |
Guide | X axis | mm | 2-35 |
| Y axis | mm | 2-45 | |
| Z axis | mm | 2-45 | |
Speed | X/Y/Z feeding rate | mm/min | 1-10000 |
| X/Y/Z rapid speed | m/min | 48/48/48 | |
Accuracy | Positioning accuracy | mm | 0.008 |
| Repeatability | mm | 0.005 | |
Tool | Tool magazine capacity | / | 24 |
| Max. tool weight | kg | 7 | |
| Max. tool length | mm | 250 | |
| Max tool dia.(with/without adjacent tool) | mm | Φ75/Φ150 | |

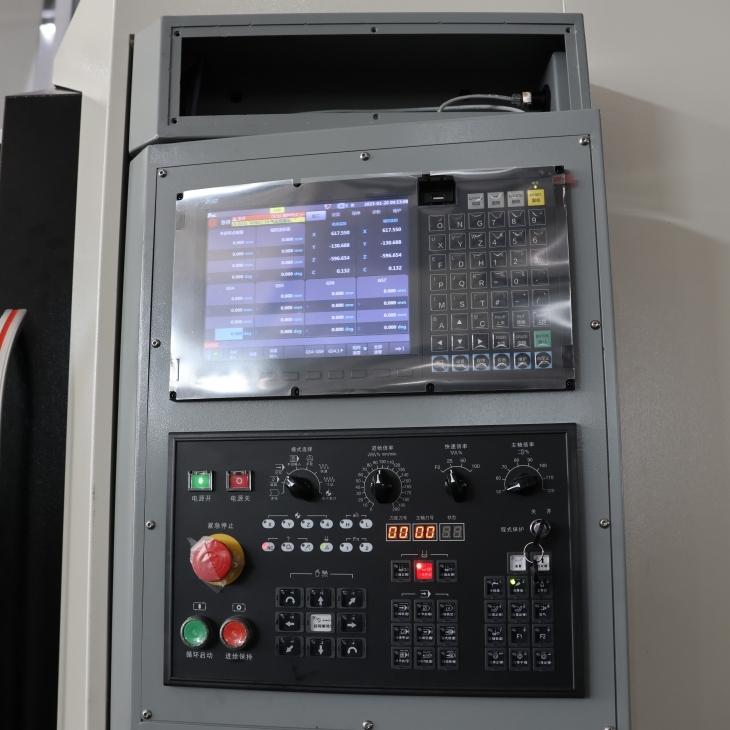

Others | System | / | Mitsubishi M80B |
| Machine dimension(L*W*H) | mm | 2240*3121*3026 | |
| Weight(about) | Kg | 4600 | |
