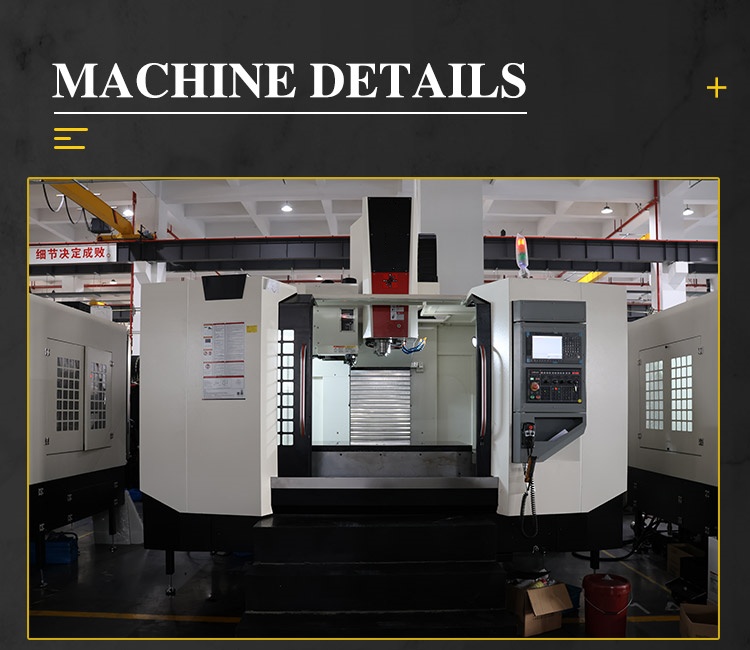

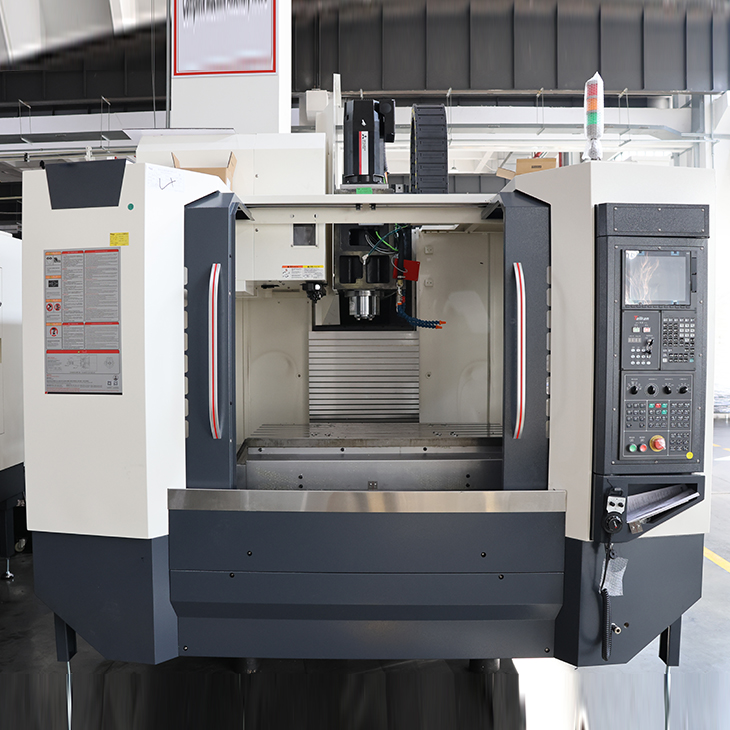

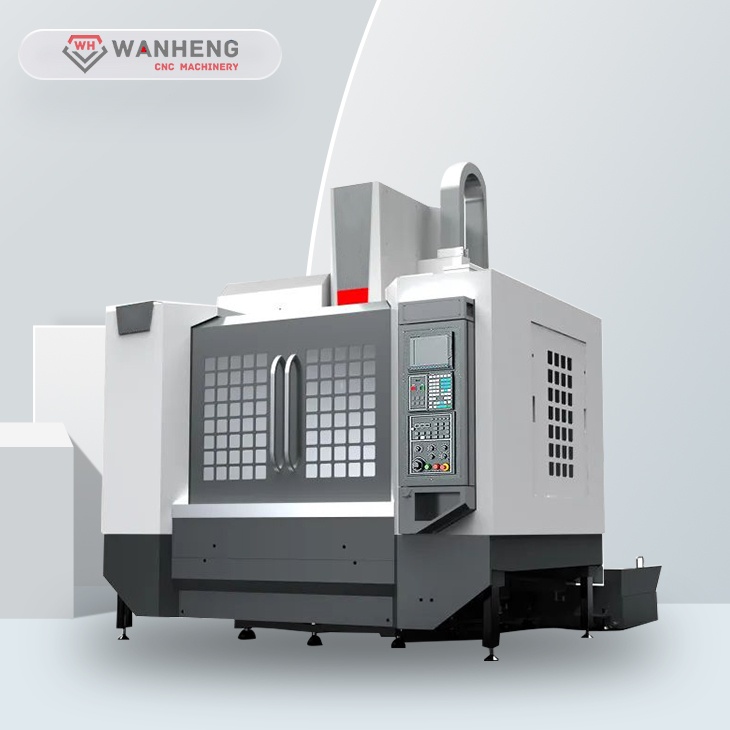

VMC1055S CNC Vertical Machine Center

VMC1055S CNC Vertical Machine Center

VMC1055S CNC Vertical Machine Center, 3 axis milling machine center, CE, ISO Certificate

Send Inquiry

Product Detail

Product Description

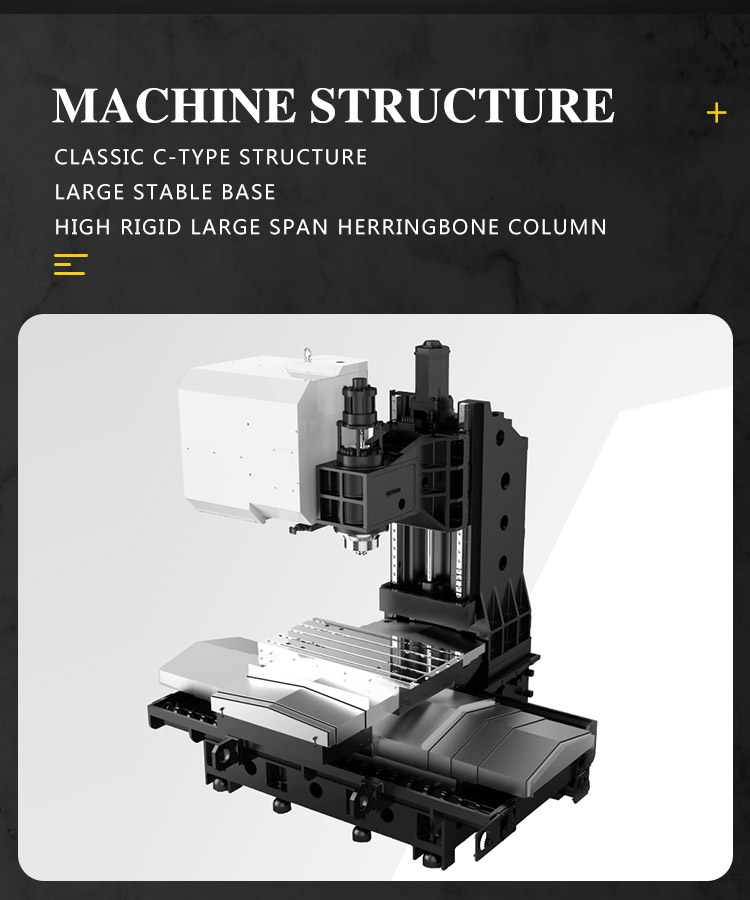

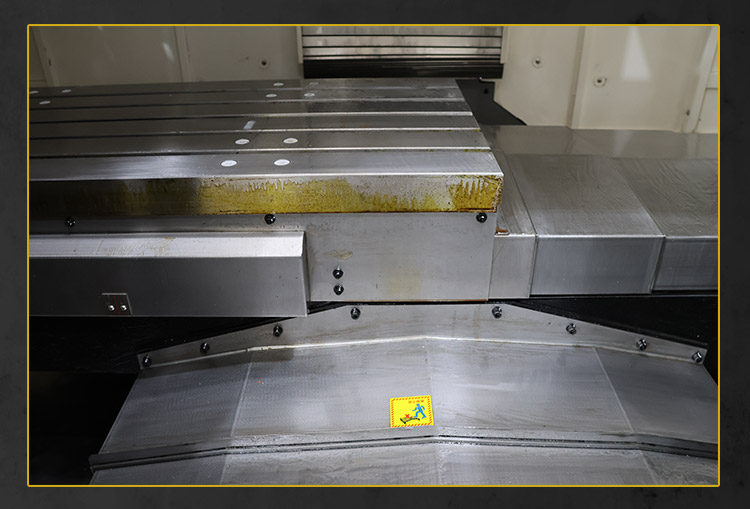

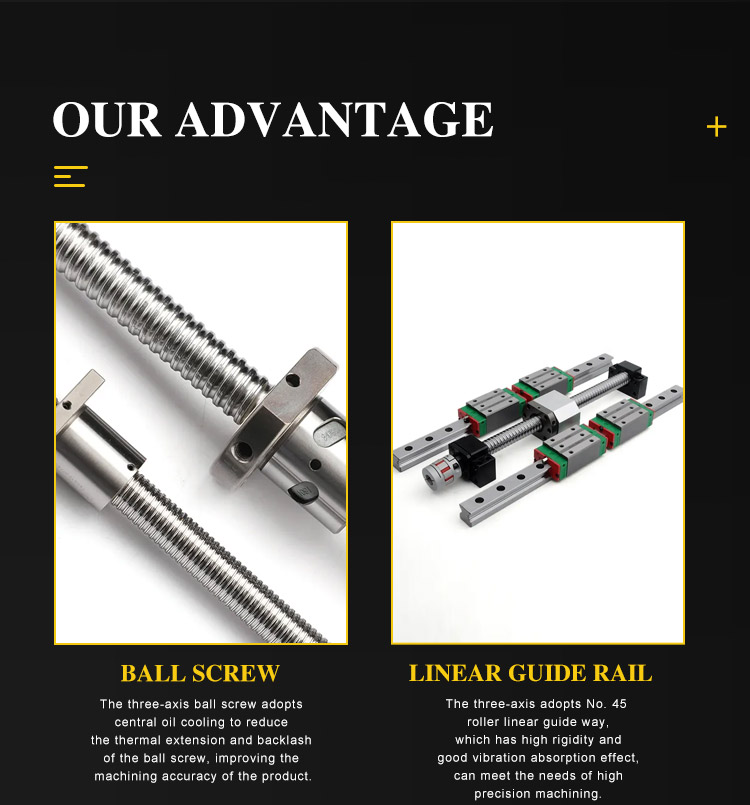

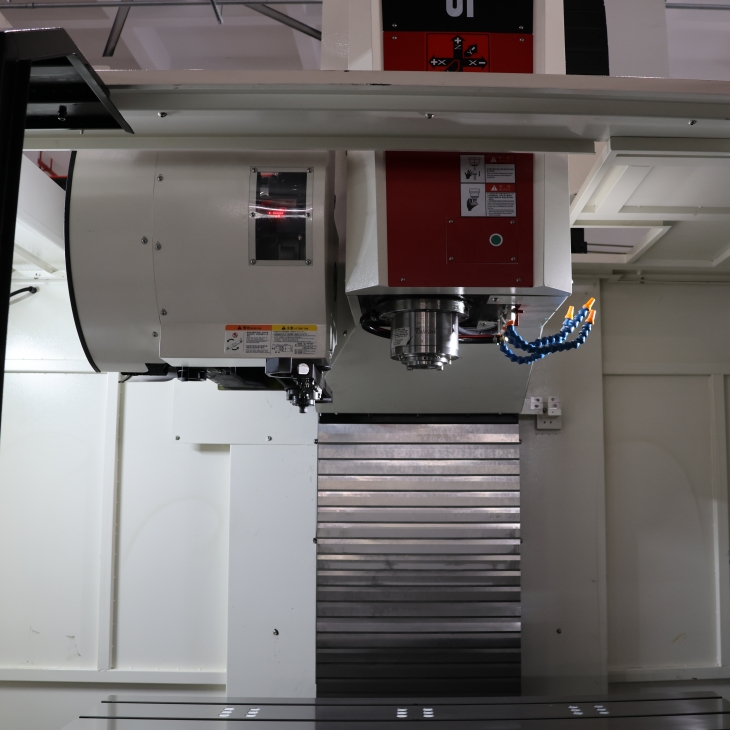

VMC1055S line rail type vertical machining center is a small and medium size machine tool, the workpiece can be automatically and continuously finished after a clamping milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes, the machine tool is suitable for small and medium-sized box type, plate type, disk type, valve type, shell type, mold and other complex parts of multi-species of small and medium batch processing. The machine adopts high precision linear rail and ball screw, the machine has better dynamic responsiveness, can achieve high speed cutting, low speed without crawling, in precision parts, 5G products, hardware, auto parts, medical equipment industry is widely used.

Application Area

Widely used 3C products, auto parts, hardware, medical devices and other industries.

Product Parameter

Item

UnitVMC1055S

Traveling

X axismm1000
Y axismm550
Z axismm600
The distance from spindle end to working tablemm100~700

Working table

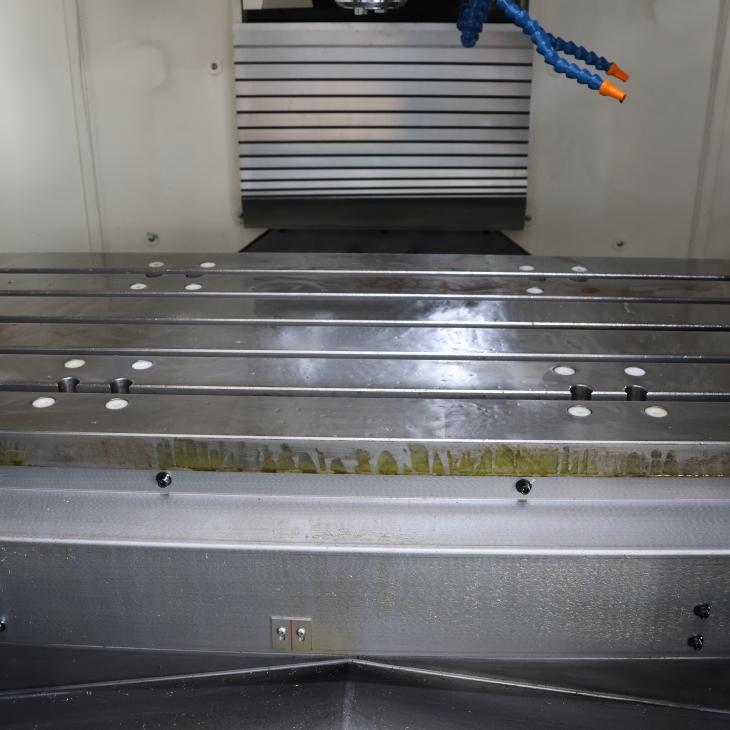

Working table sizemm1100*500
Max. loadingKg500

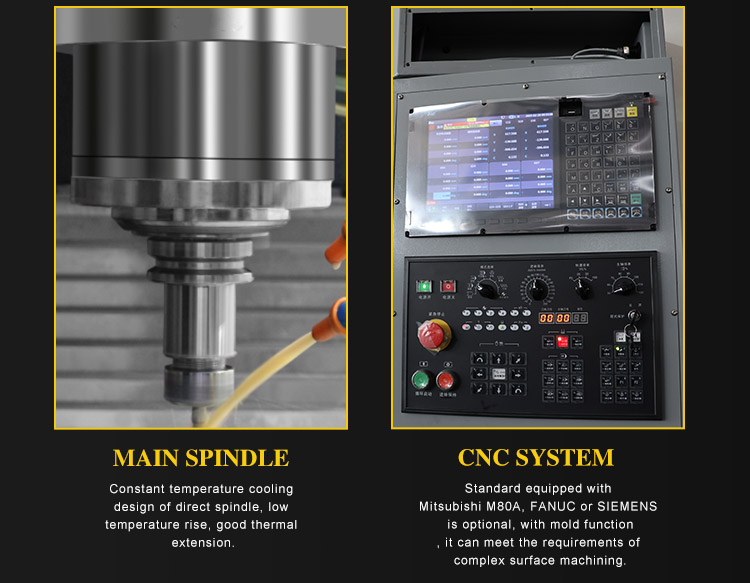

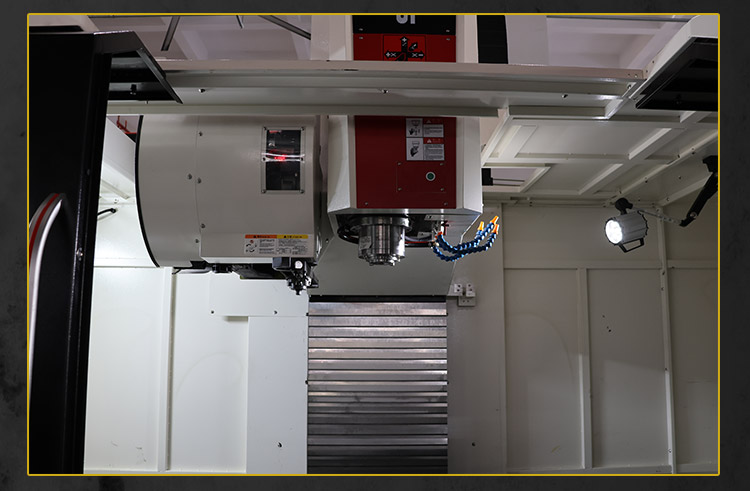

Spindle

Spindle powerKw7.5/11
Spindle torqueN.m35.8/95.5
Spindle speedr/min50~12000 (Direct)
Spindle taper/BT40

Guide

X axismm2-45
Y axismm2-45
Z axismm2-45

Speed

X/Y/Z feeding ratemm/min1-10000
X/Y/Z rapid speedm/min48/48/48

Accuracy

Positioning accuracymm0.008
Repeatabilitymm0.005

Tool

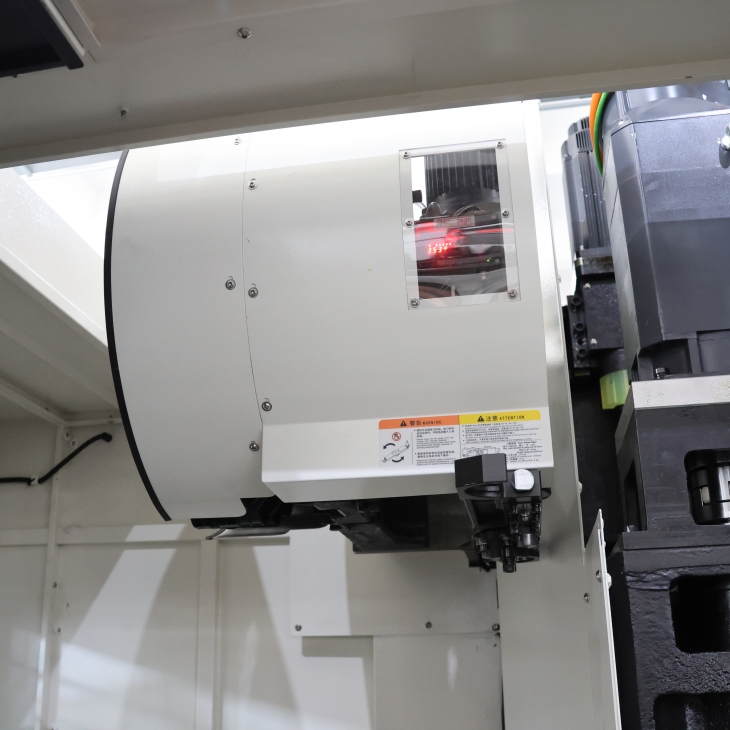

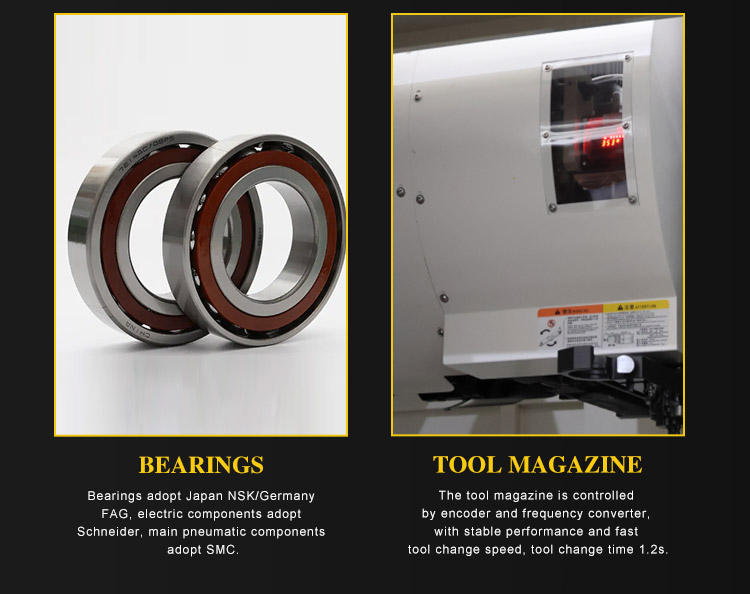

Tool magazine capacity/24
Max. tool weightkg7
Max. tool lengthmm250
Max tool dia.(with/without adjacent tool)mmΦ75/Φ150

Others

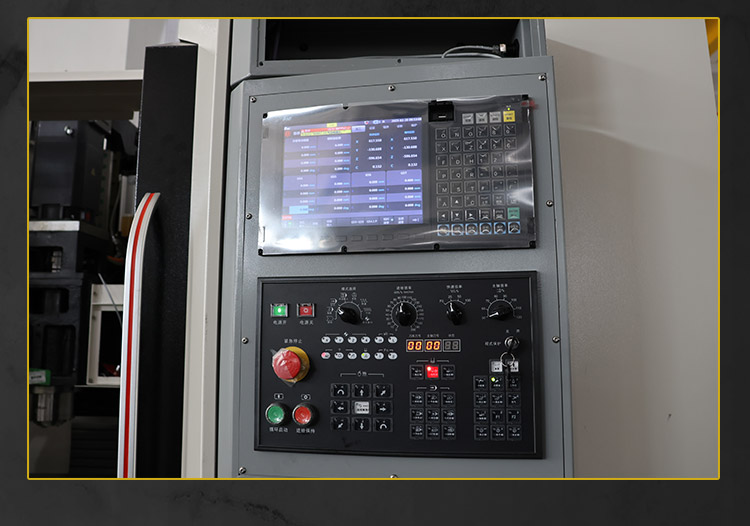

System/Mitsubishi M80B
Machine dimension(L*W*H)mm2500*3150*3032
Weight(about)Kg4700
