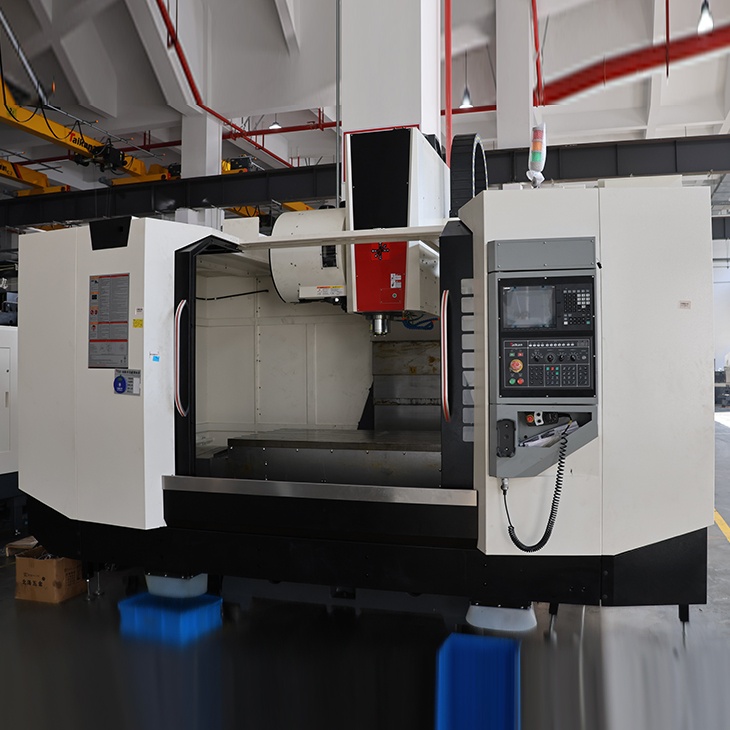

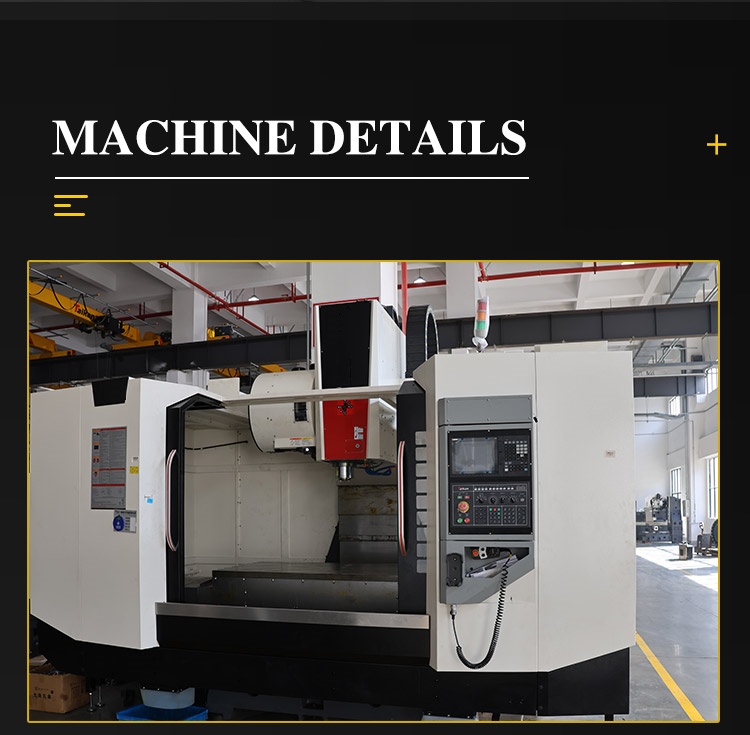

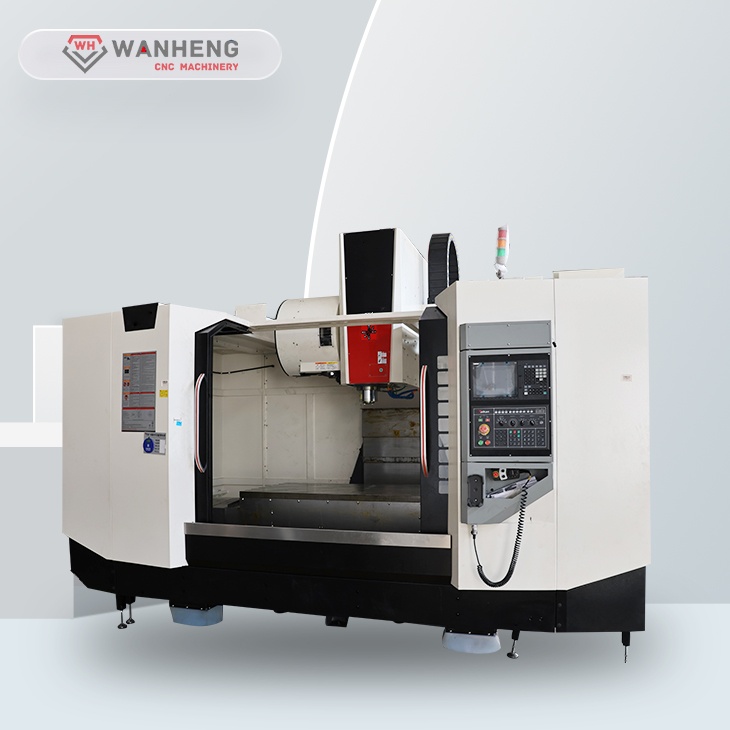

VMC1685S CNC Vertical Machine Center
VMC1685S CNC Vertical Machine Center, 3 axis milling machine center, CE, ISO Certificate
Send InquiryProduct Detail
Product Description
VMC1685S vertical machining center is a medium and large size machine tool, the workpiece can be automatically and continuously completed after a clamping milling, drilling, boring, expansion, reaming, countersinking, tapping and other processes, the machine tool is suitable for medium-sized boxes, plates, discs, valves, shells and other complex parts of multi-species of small and medium batch processing.

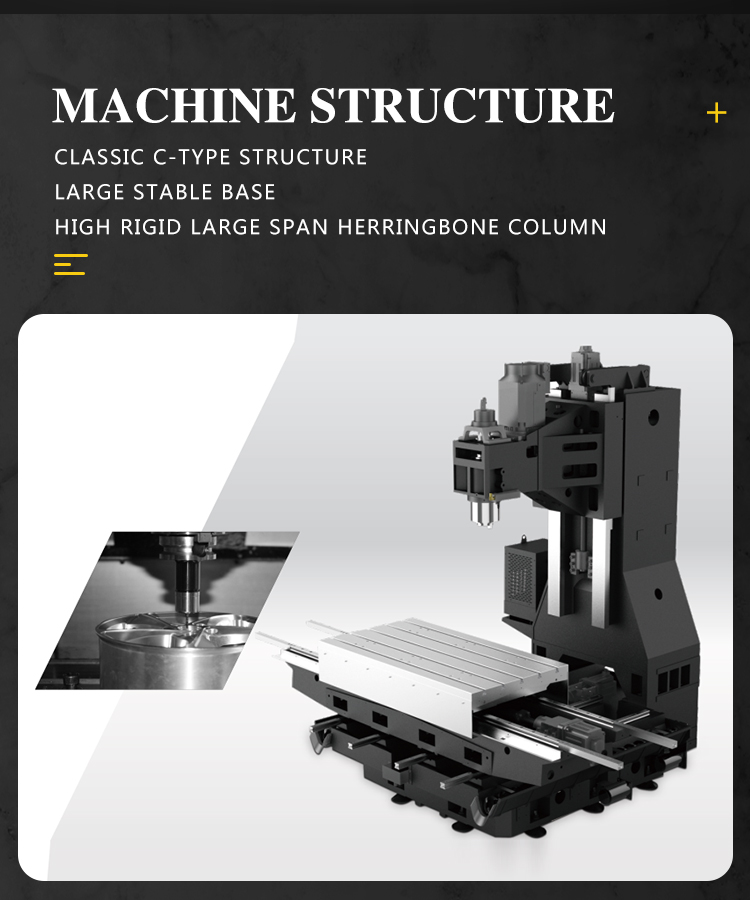

The whole machine structure is fixed column type, cross slide structure, machine tool Y axis adopts four guide rails design, which can ensure the heavy load capacity when processing, and ensure the processing accuracy. The whole machine is fully enclosed and protected, with beautiful machine shape and convenient operation and maintenance.
All the big parts of the foundation are made of high quality resin sand molding and high strength cast iron material casting, so that the machine tool can get high rigidity and stable accuracy.
Application Area
Widely used 3C products, auto parts, hardware, medical devices and other industries.
Product Parameter
Item | Unit | VMC1685S | |
Traveling | X axis | mm | 1650 |
| Y axis | mm | 850 | |
| Z axis | mm | 850 | |
| The distance from spindle end to working table | mm | 120～970 | |
Working table | Working table size | mm | 1700*850 |
| Max. loading | Kg | 1600 | |
Spindle | Spindle power | Kw | 15/18.5 |
| Spindle torque | N.m | 143/191 | |
| Spindle speed | r/min | 50～6000 (Belt) | |
| Spindle taper | / | BT50 | |

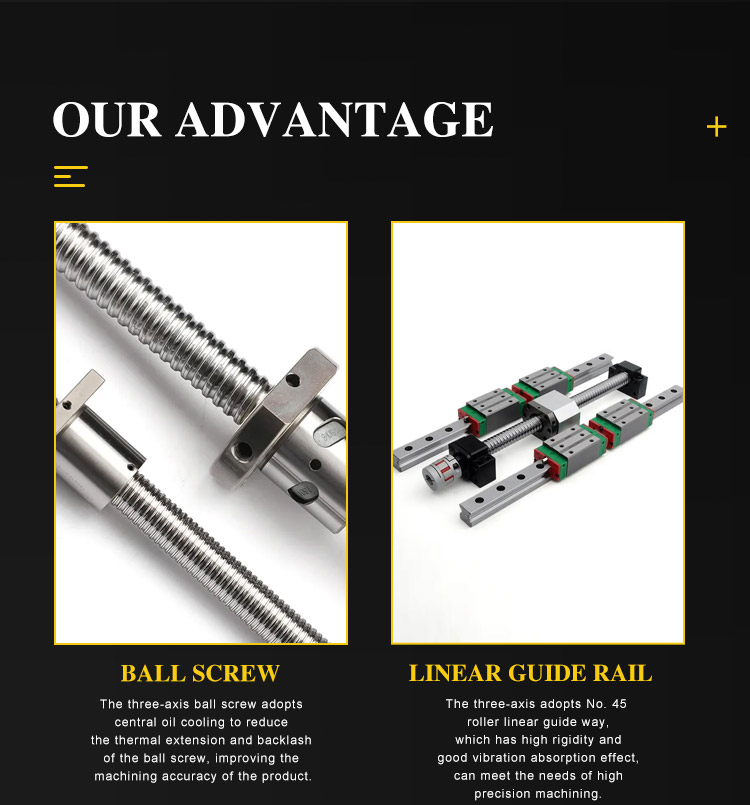

Guide | X axis | mm | 2-45 |
| Y axis | mm | 4-45 | |
| Z axis | mm | 2-55 | |
Speed | X/Y/Z feeding rate | mm/min | 1-10000 |
| X/Y/Z rapid speed | m/min | 24/24/20 | |
Accuracy | Positioning accuracy | mm | 0.015 |
| Repeatability | mm | 0.008 | |
Tool | Tool magazine capacity | / | 24 |
| Max. tool weight | kg | 15 | |
| Max. tool length | mm | 300 | |
| Max tool dia.(with/without adjacent tool) | mm | Φ105/Φ210 | |

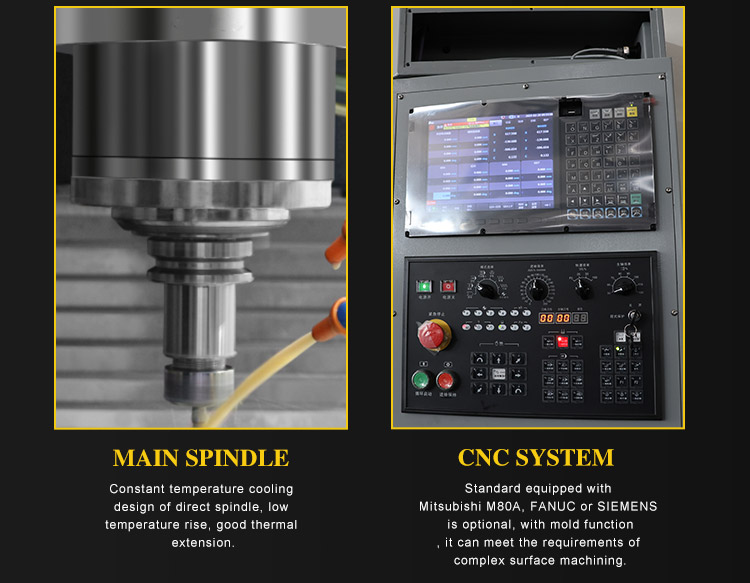

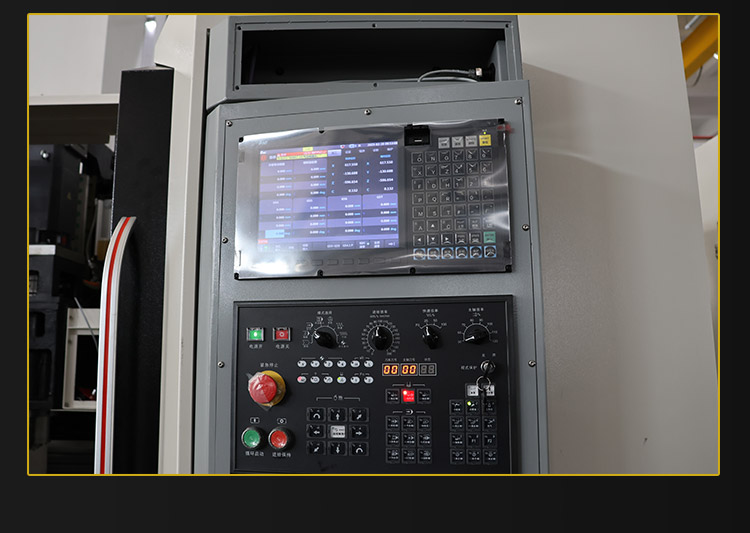

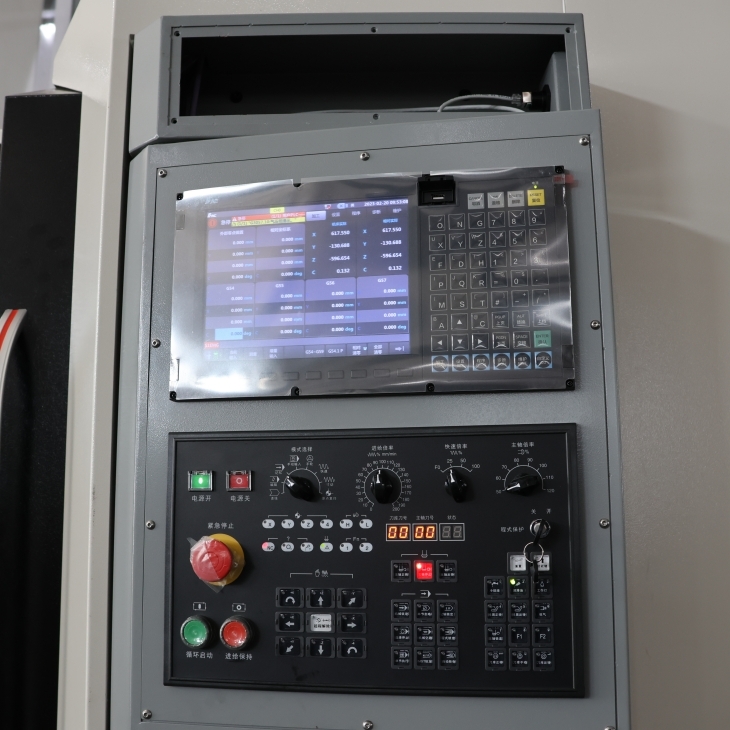

Others | System | / | FANUC 0i-MF Plus(5) |
| Machine dimension(L*W*H) | mm | 4190*3380*3652 | |
| Weight(about) | Kg | 11100 | |
