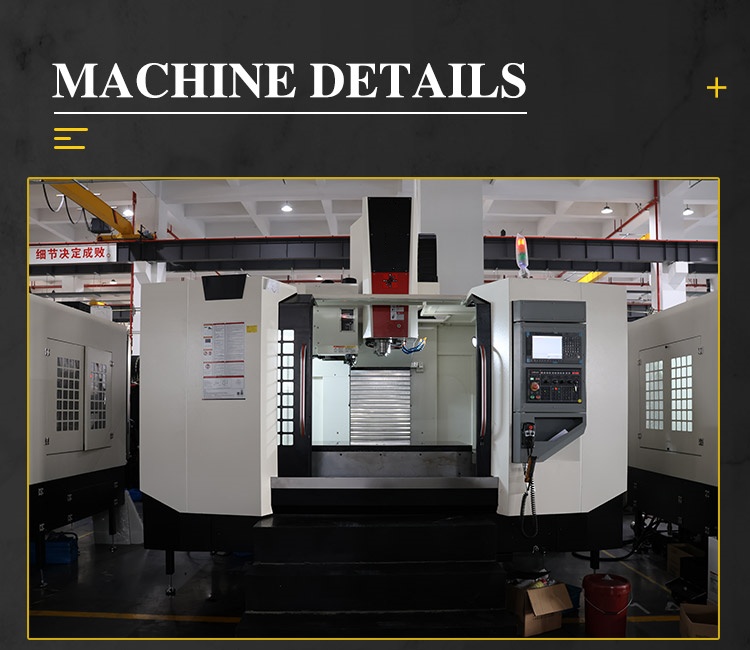

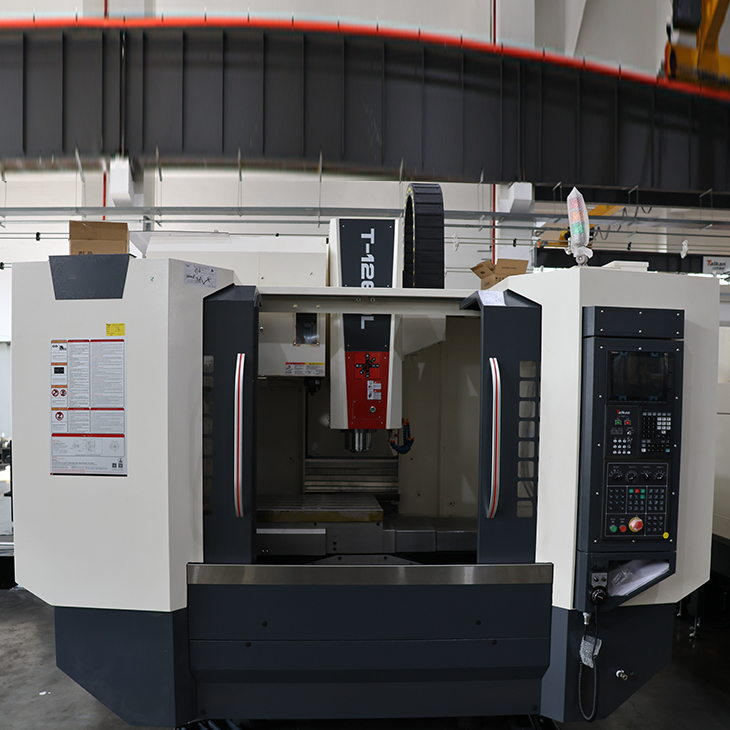

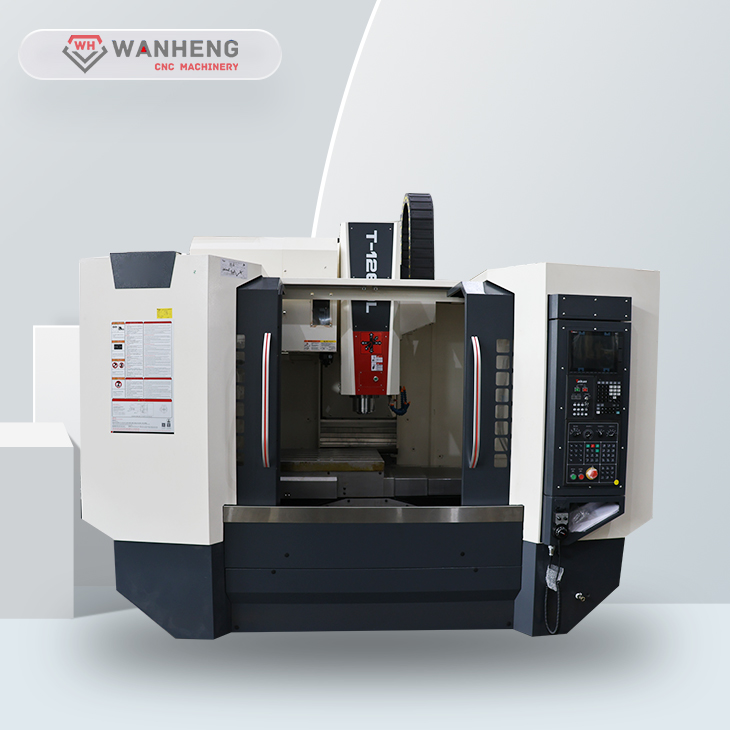

VMC1270S CNC Vertical Machine Center
VMC1270S CNC Vertical Machine Center, 3 axis milling machine center, CE, ISO Certificate
Send InquiryProduct Detail
Product Description

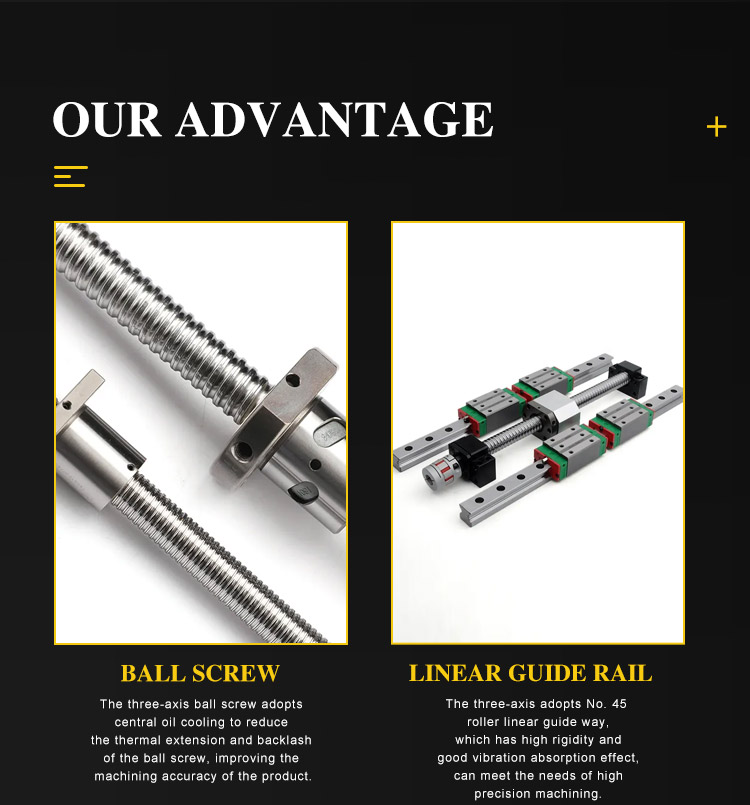

VMC1270S line rail type vertical machining center is a small and medium size machine tool, the workpiece can be automatically and continuously finished after a clamping milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes, the machine tool is suitable for small and medium-sized box type, plate type, disk type, valve type, shell type, mold and other complex parts of multi-species of small and medium batch processing. The machine adopts high precision linear rail and ball screw, the machine has better dynamic responsiveness, can achieve high speed cutting, low speed without crawling, in precision parts, 5G products, hardware, auto parts, medical equipment industry is widely used.
Application Area
Widely used 3C products, auto parts, hardware, medical devices and other industries.
Product Parameter
Item | Unit | VMC1270S | |
Traveling | X axis | mm | 1200 |
| Y axis | mm | 700 | |
| Z axis | mm | 700 | |
| The distance from spindle end to working table | mm | 100～800 | |

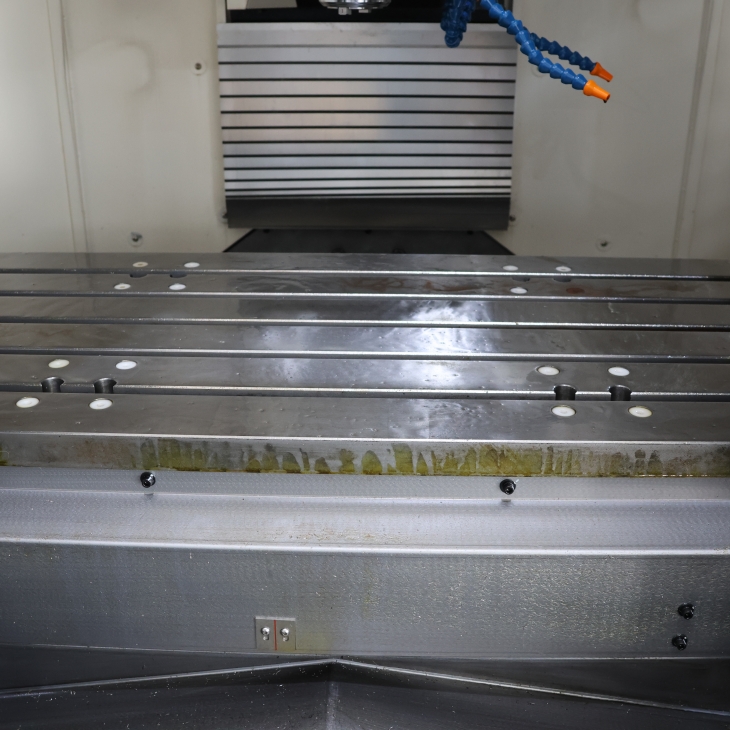

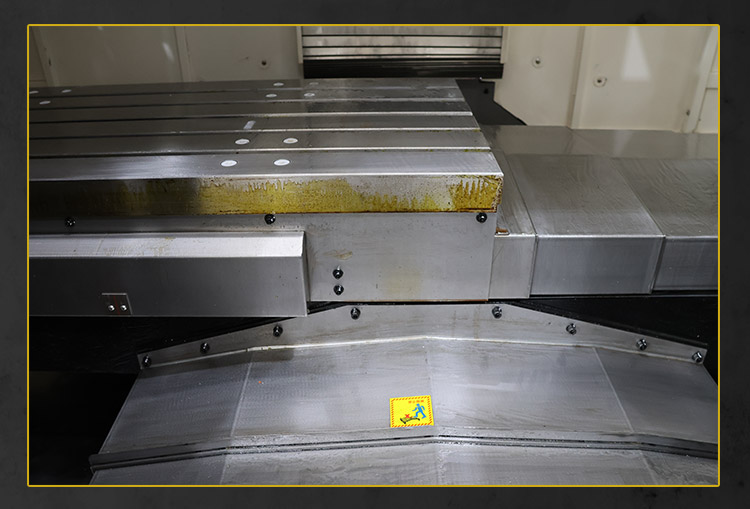

Working table | Working table size | mm | 1300*650 |
| Max. loading | Kg | 800 | |

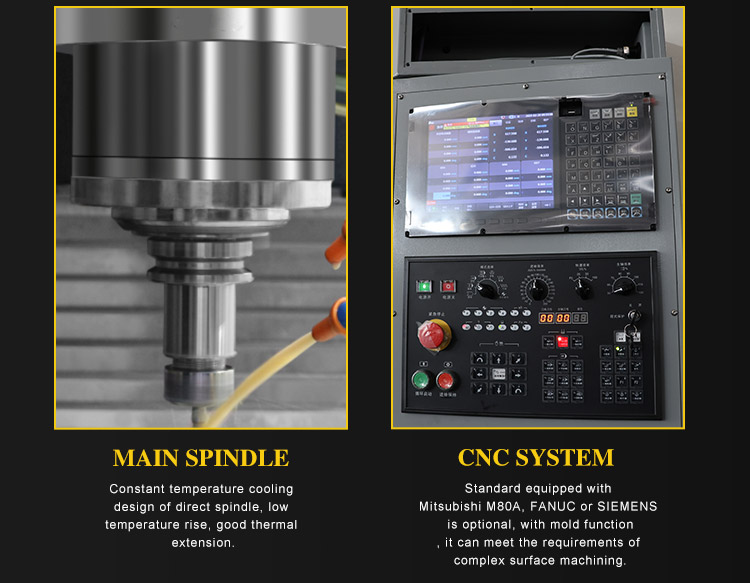

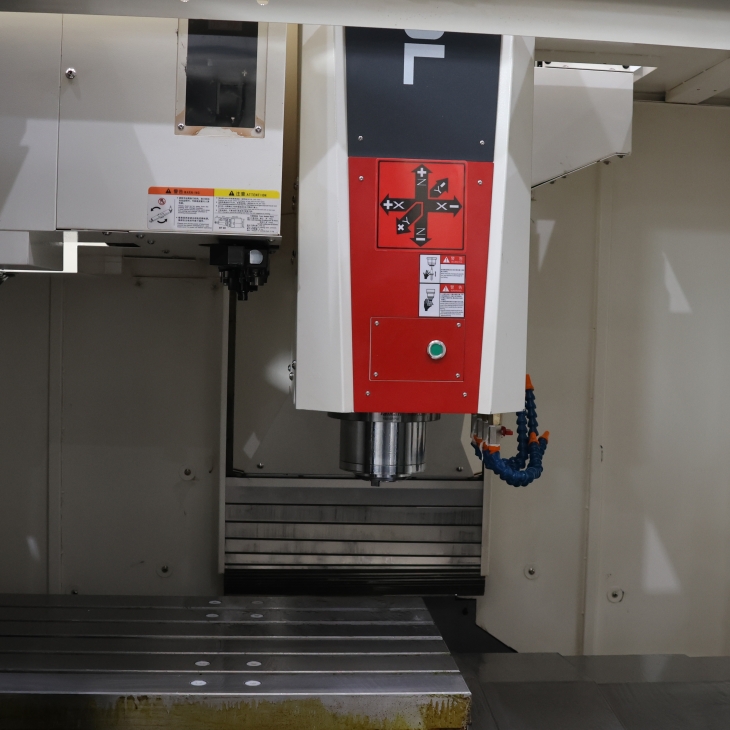

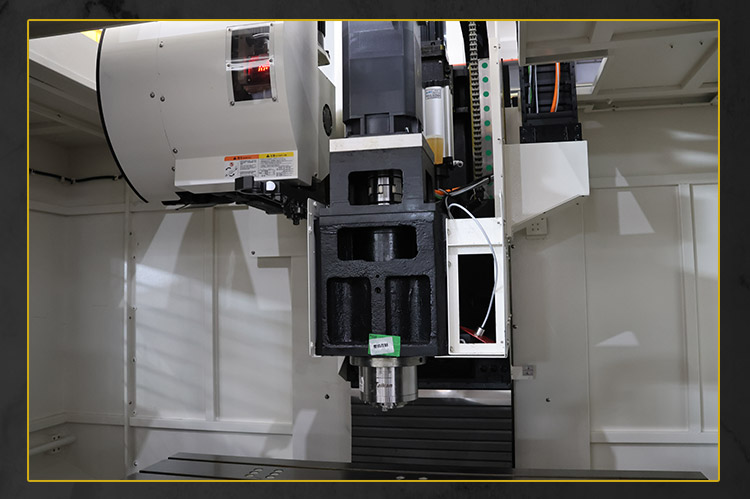

Spindle | Spindle power | Kw | 7.5/11 |
| Spindle torque | N.m | 35.8/95.5 | |
| Spindle speed | r/min | 50~12000 (Direct) | |
| Spindle taper | / | BT40 | |
Guide | X axis | mm | 2-45 |
| Y axis | mm | 2-45 | |
| Z axis | mm | 2-45 | |
Speed | X/Y/Z feeding rate | mm/min | 1-10000 |
| X/Y/Z rapid speed | m/min | 36/36/30 | |
Accuracy | Positioning accuracy | mm | 0.01 |
| Repeatability | mm | 0.007 | |

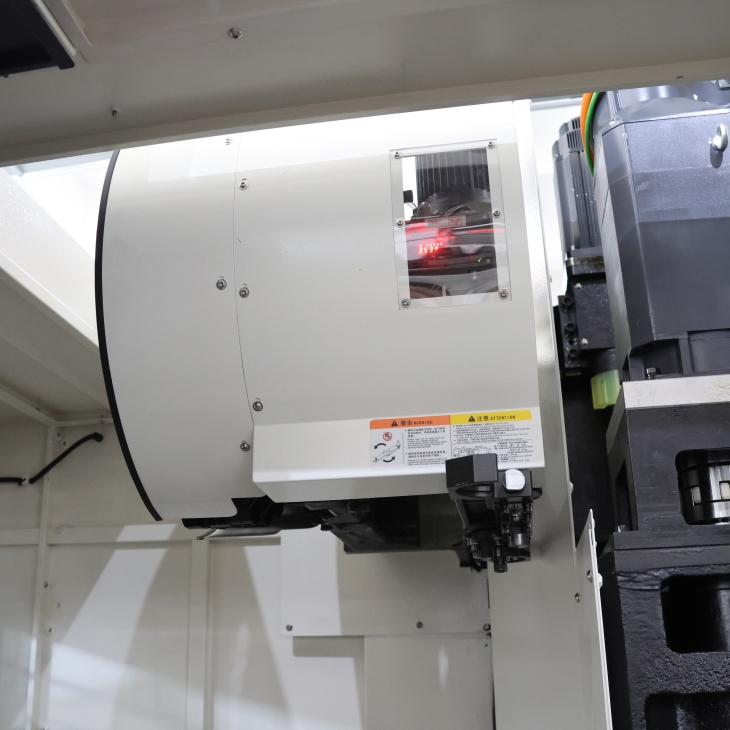

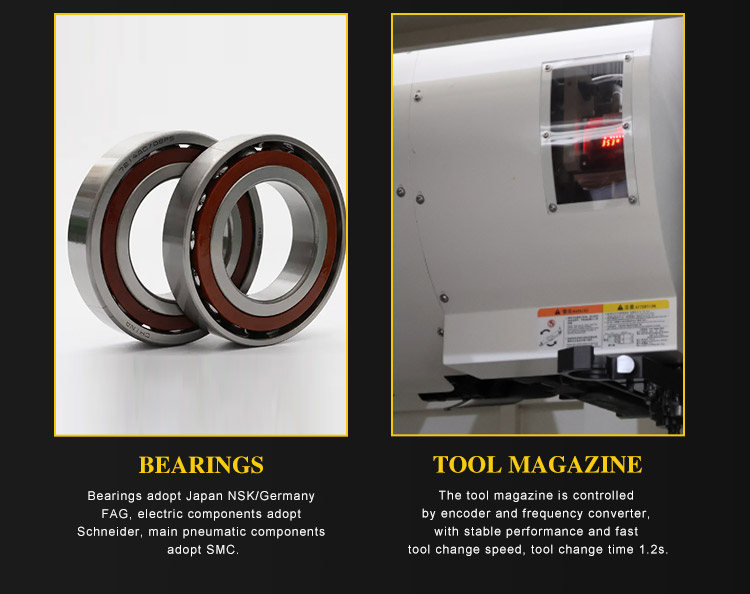

Tool | Tool magazine capacity | / | 24 |
| Max. tool weight | kg | 7 | |
| Max. tool length | mm | 250 | |
| Max tool dia.(with/without adjacent tool) | mm | Φ75/Φ150 | |

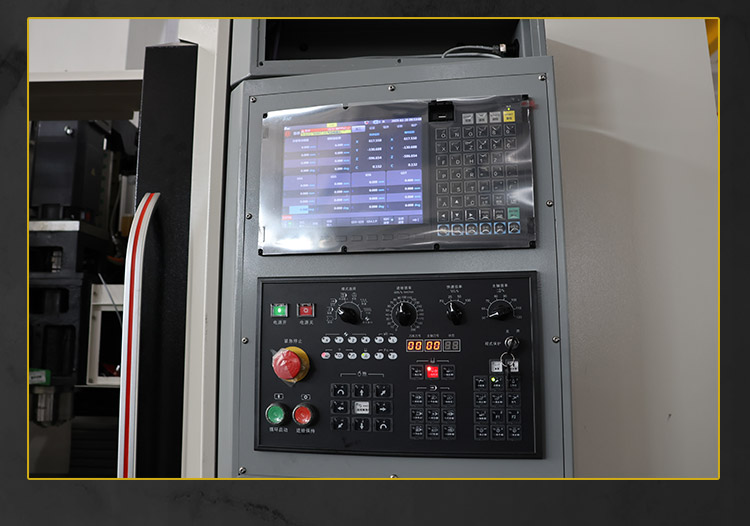

Others | System | / | Mitsubishi M80B |
| Machine dimension(L*W*H) | mm | 3000*3500*3100 | |
| Weight(about) | Kg | 6250 | |
