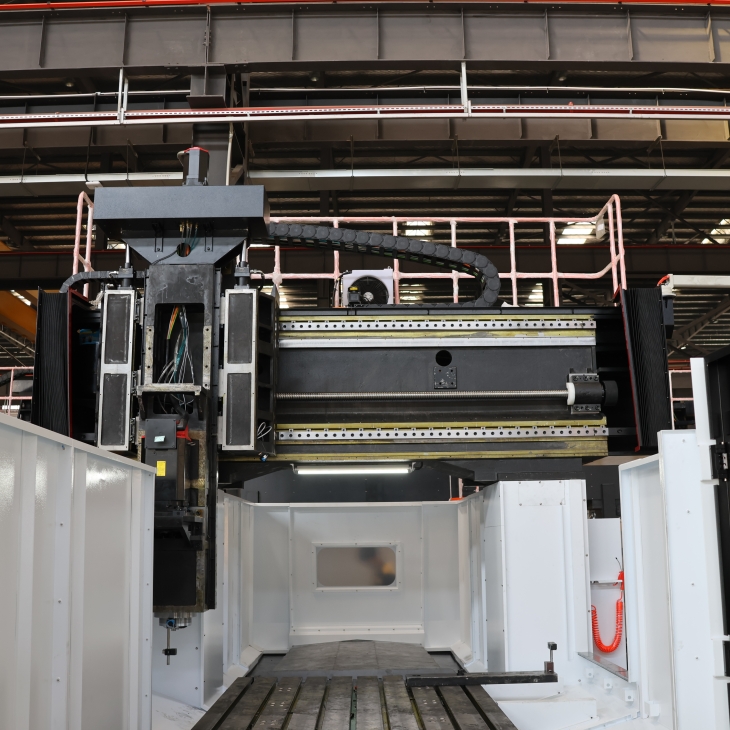

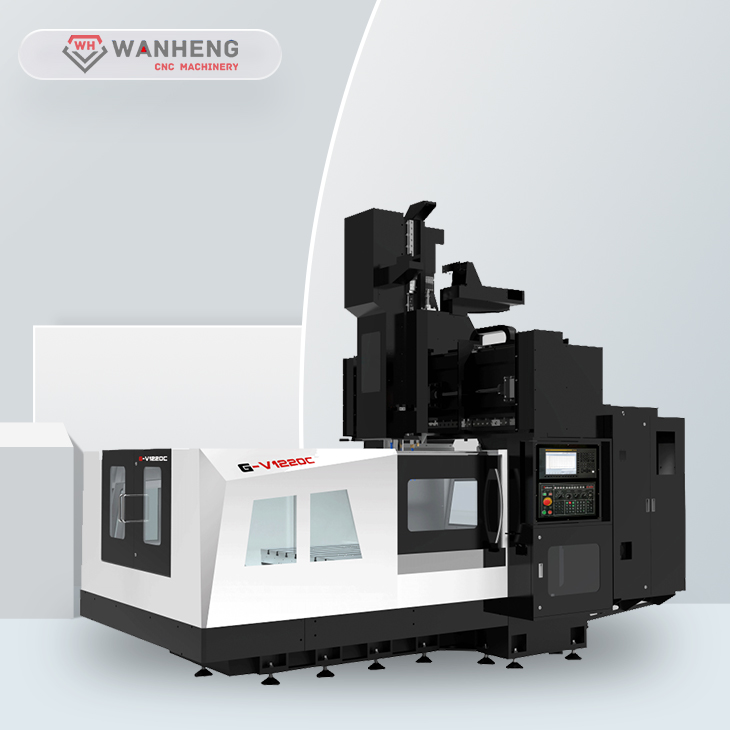

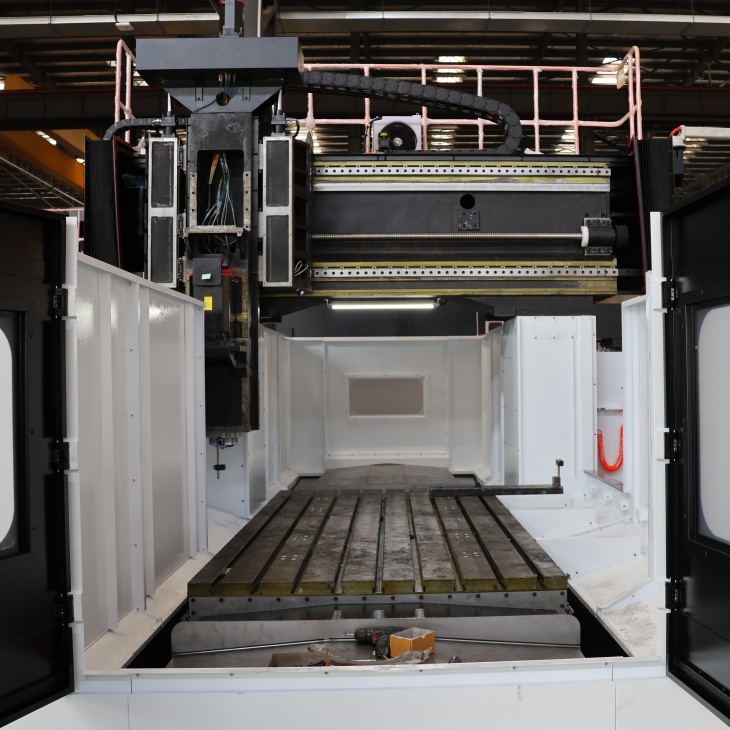

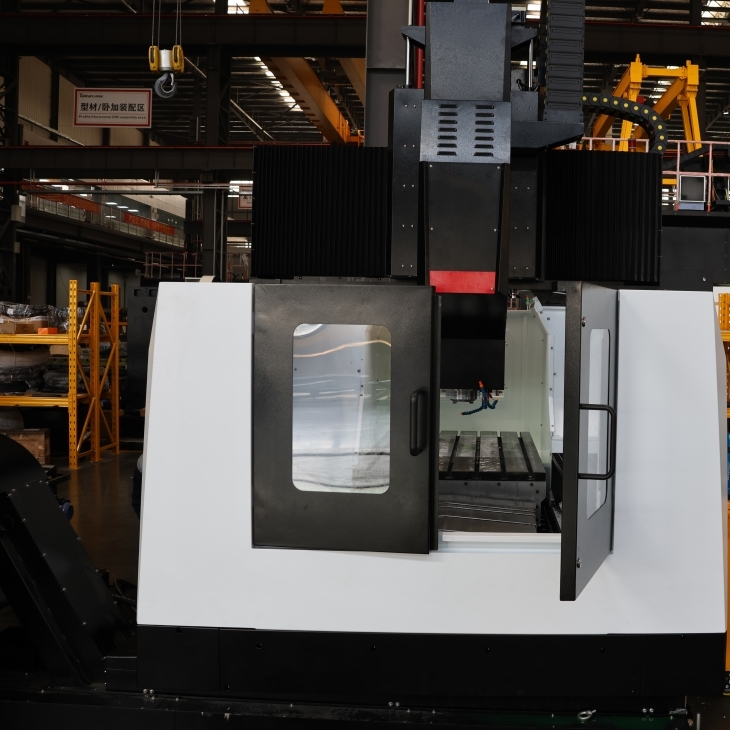

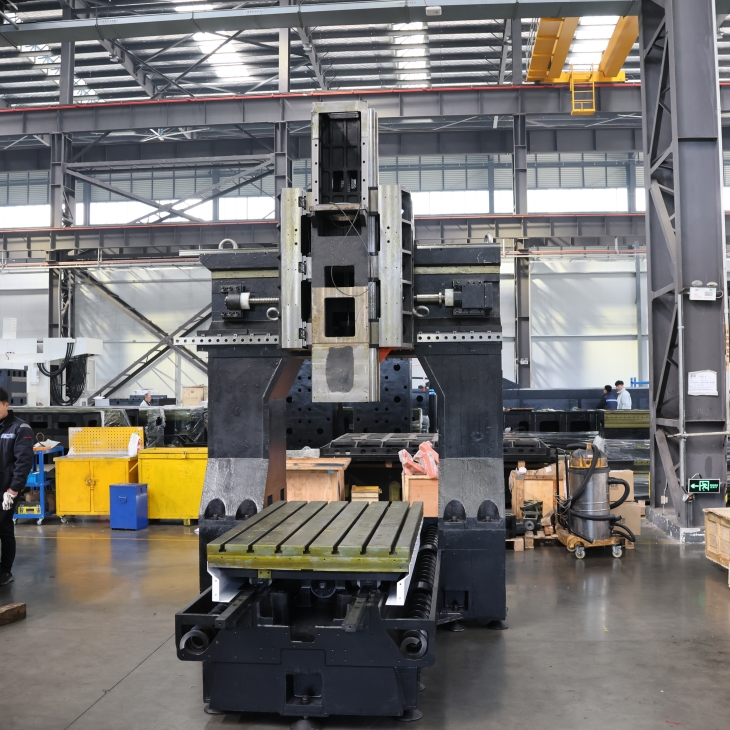

G-V1520 CNC Gantry Milling Machine Center

G-V1520 CNC Gantry Milling Machine Center, 3 axis milling machine center, CE ISO certificate

Send Inquiry

Product Detail

Product Description

G-V series double column machining center includes series models
The integrated design of the column and beam has good rigidity, high machining accuracy and good stability;
The three-axis support adopts roller linear guide, which has fast dynamic response speed, high precision;
The three-axis feed is driven by the direct connection of the motor and the high-precision ball screw. The two ends of the screw are fixed with a pre-stretched structure, and the transmission accuracy is high;

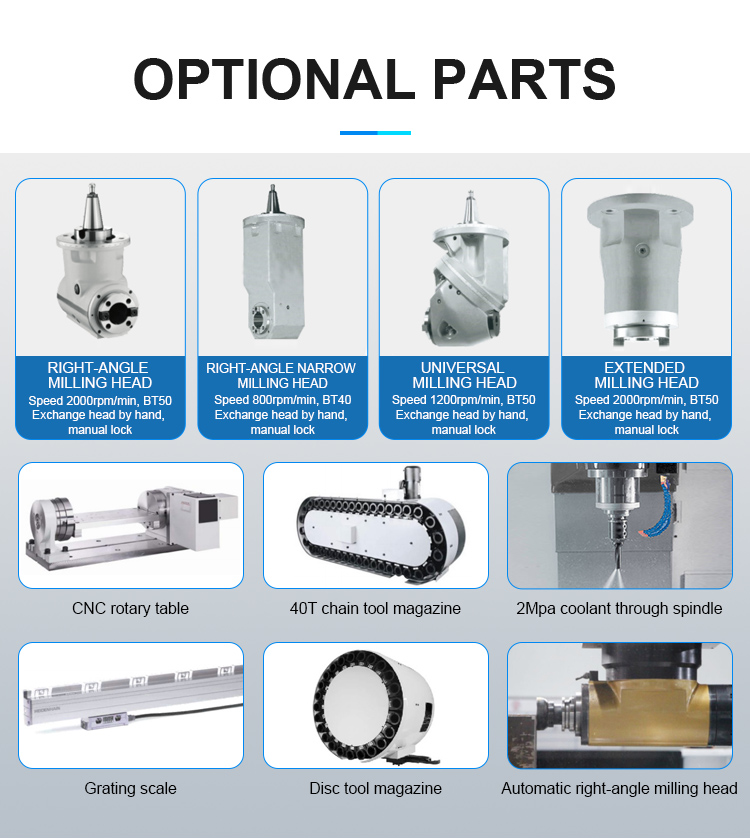

The main shaft is equipped with a belt-driven BT50-6000rpm main shaft as standard, and can be equipped with gear heads and electric spindles to meet different processing needs;
Z-axis is equipped with nitrogen balance device, with good load characteristics;
The machine tool adopts double screw row and front chain plate chip conveyor;
This series of machine tools is mainly suitable for high-speed and high-precision machining of parts in industries such as automobiles, laser equipment, automation equipment, energy, rail transit, and molds;

Product Parameter

Item		Unit	G-V(G-R)1520/1530/1540 A/B/C/Z
Traveling	Worktable Travel (X axis)	mm	2200/3200/4200
	Spindle Travel (Y axis)	mm	A/B/C:2200; Z(Pentahedron):2700
	Ram Travel (Z axis)	mm	1000
	The distance from spindle end face to working table	mm	250-1250
	Available Gantry Width	mm	1950
Working table	Working table size	mm	20001500/30001500/4000*1500
Working table	Max. loading	T	6/10/13
Spindle	Spindle taper	/	A,B:BT50; C:BT40
	Spindle power	kw	A,B:15/18.5; C:15/26; Z:15/25
	Spindle speed	r/min	A:6000; B/Z:6000; C:15000
	Spindle torque	N.m	A:190/314; B:807/1331; C:45.7/125; Z:539/897
	Ram section		420*420
Speed	Speed of cutting feed	m/min	10/10/10
Speed	X/Y/Z rapid speed	mm/min	15/15/15
Tool	Tool magazine capacity	/	24(40)
	Max. tool dia./length/weight	mm/mm/kg	Φ110/350/15
	Max tool dia.(without adjacent tool)	mm	Φ200
Others	System	/	FANUC 0I-MF(5)
