G-V2530 CNC Gantry Milling Machine Center

G-V2530 CNC Gantry Milling Machine Center, 3 axis milling machine center, CE ISO certificate

Send Inquiry

Product Detail

Product Description

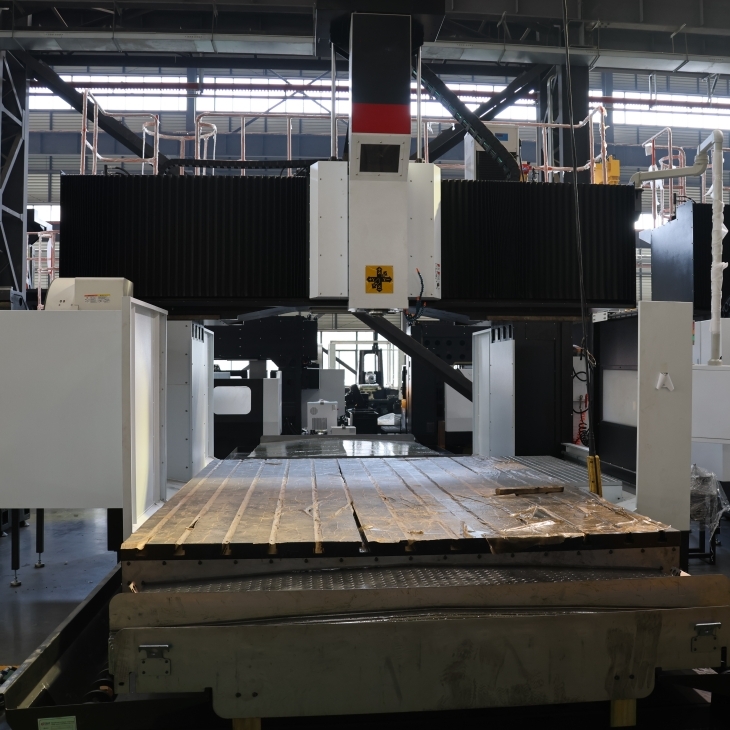

G-V series double column machining center includes series models
The integrated design of the column and beam has good rigidity, high machining accuracy and good stability;
The three-axis support adopts roller linear guide, which has fast dynamic response speed, high precision;
The three-axis feed is driven by the direct connection of the motor and the high-precision ball screw. The two ends of the screw are fixed with a pre-stretched structure, and the transmission accuracy is high;

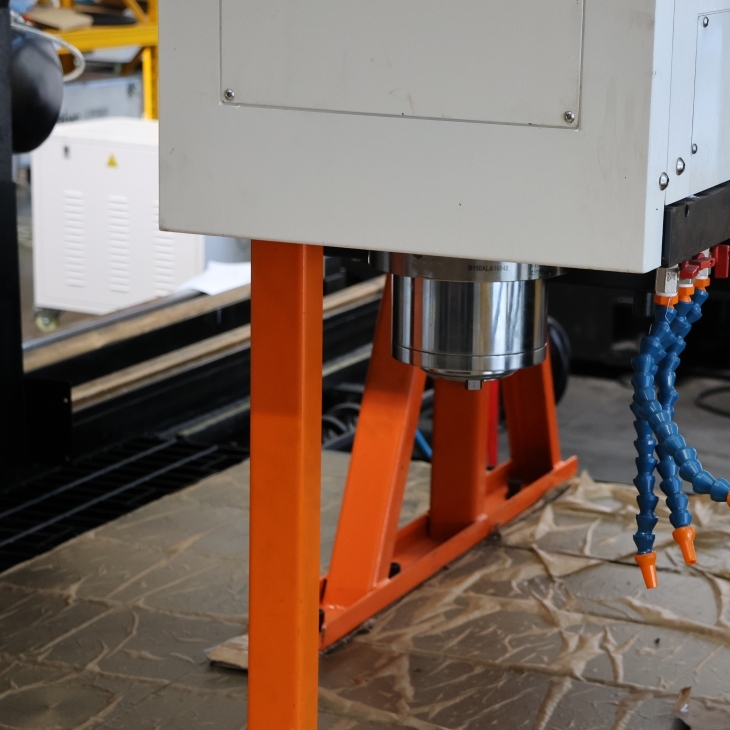

The main shaft is equipped with a belt-driven BT50-6000rpm main shaft as standard, and can be equipped with gear heads and electric spindles to meet different processing needs;

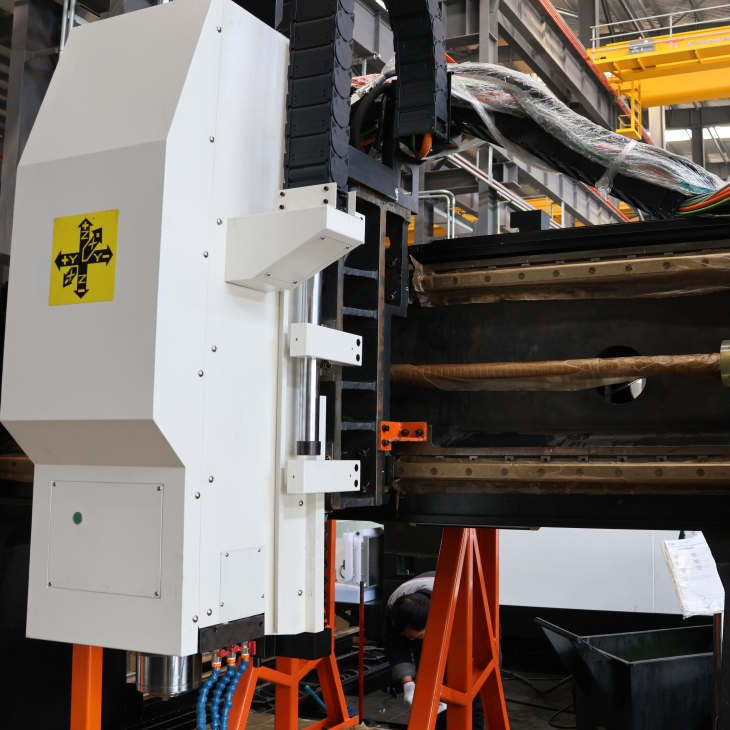

Z-axis is equipped with nitrogen balance device, with good load characteristics;
The machine tool adopts double screw row and front chain plate chip conveyor;
This series of machine tools is mainly suitable for high-speed and high-precision machining of parts in industries such as automobiles, laser equipment, automation equipment, energy, rail transit, and molds;

Product Parameter

Item		Unit	G-V(G-R)2530/2540/2550/2560 A/B/C/Z
Traveling	Worktable Travel (X axis)	mm	3200/4200/5200/6200
	Spindle Travel (Y axis)	mm	A/B/C:3200; Z(Pentahedron):3700
	Ram Travel (Z axis)	mm	1000
	The distance from spindle end face to working table	mm	250-1250
	Available Gantry Width	mm	2950
Working table	Working table size	mm	30002500/40002500/50002500/60002500
Working table	Max. loading	T	18/22/25/28
Spindle	Spindle taper	/	BT50
	Spindle power	kw	A,B,Z:22/35; C:26/45
	Spindle speed	r/min	A:6000; B/Z:6000; C:10000
	Spindle torque	N.m	A:186/297; B,Z:790/1258; C:305/623
	Ram section		420*420
Speed	Speed of cutting feed	m/min	10/10/10
Speed	X/Y/Z rapid speed	mm/min	15/15/15
Tool	Tool magazine capacity	/	24(40)
	Max. tool dia./length/weight	mm/mm/kg	Φ110/350/15
	Max tool dia.(without adjacent tool)	mm	Φ200
Others	System	/	FANUC 0I-MF(1)/α motor
